Panto Leko 60

60W tunable LED profile spot IP65

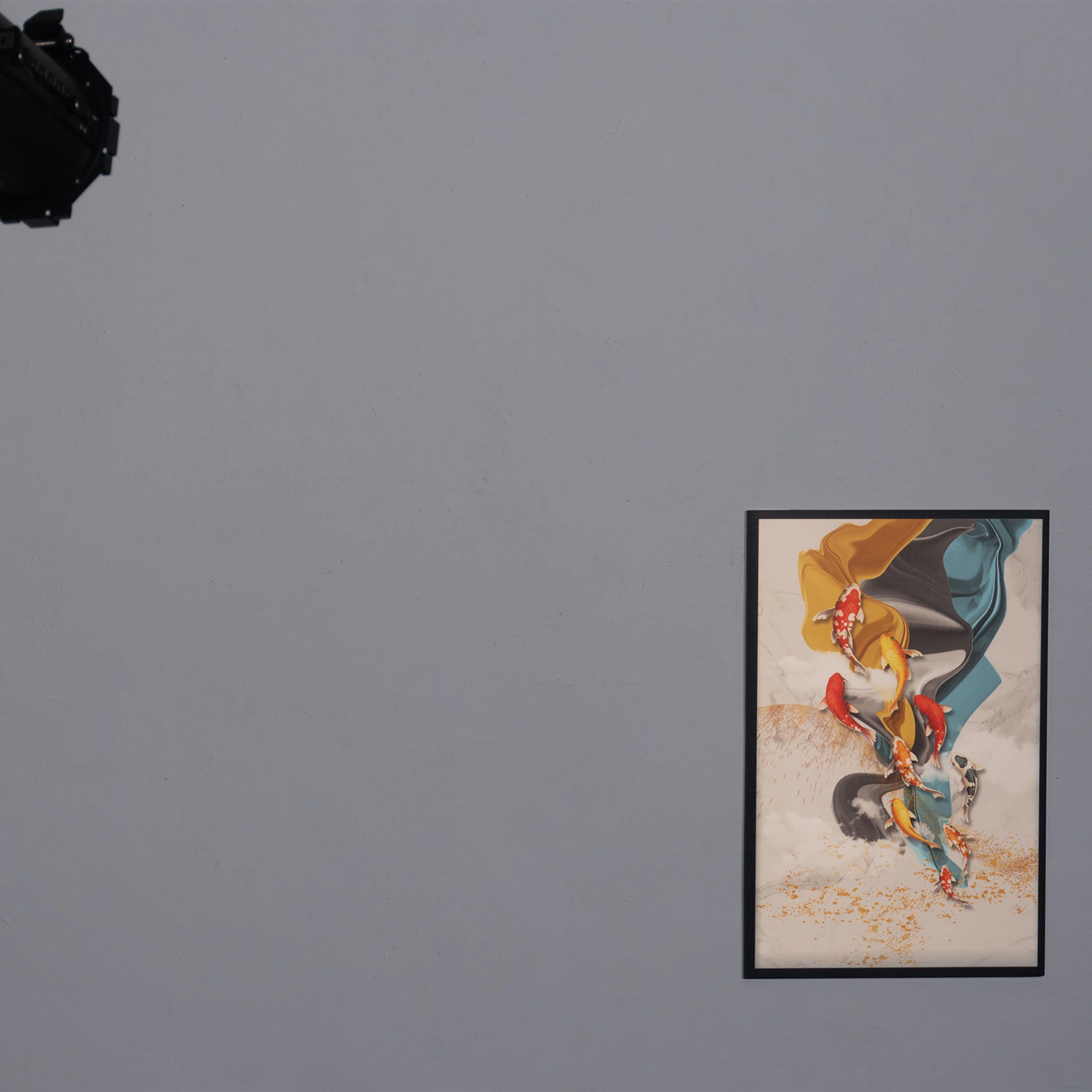

Panto Leko 60 is a 60W tunable COB LED profile spot. Die-casting housing, fan-free design. With 15° – 30° and 25° – 50° zoom lens optional, color temperature adjustable from 2700K – 6000K. It’s an idea product for art gallery, museum, shopping mall.

Color temperature: It comes with tunable color temperature from 2700K to 6000K. Moreover, our innovation design ensures that the power stays same when adjusting color temperature. It is 60Watt warm white, 60Watt cold white and still 60Watt when mixing.

Robust design: The whole body is die-casting aluminum. Unique, clean and appearance. It’s durable for application.

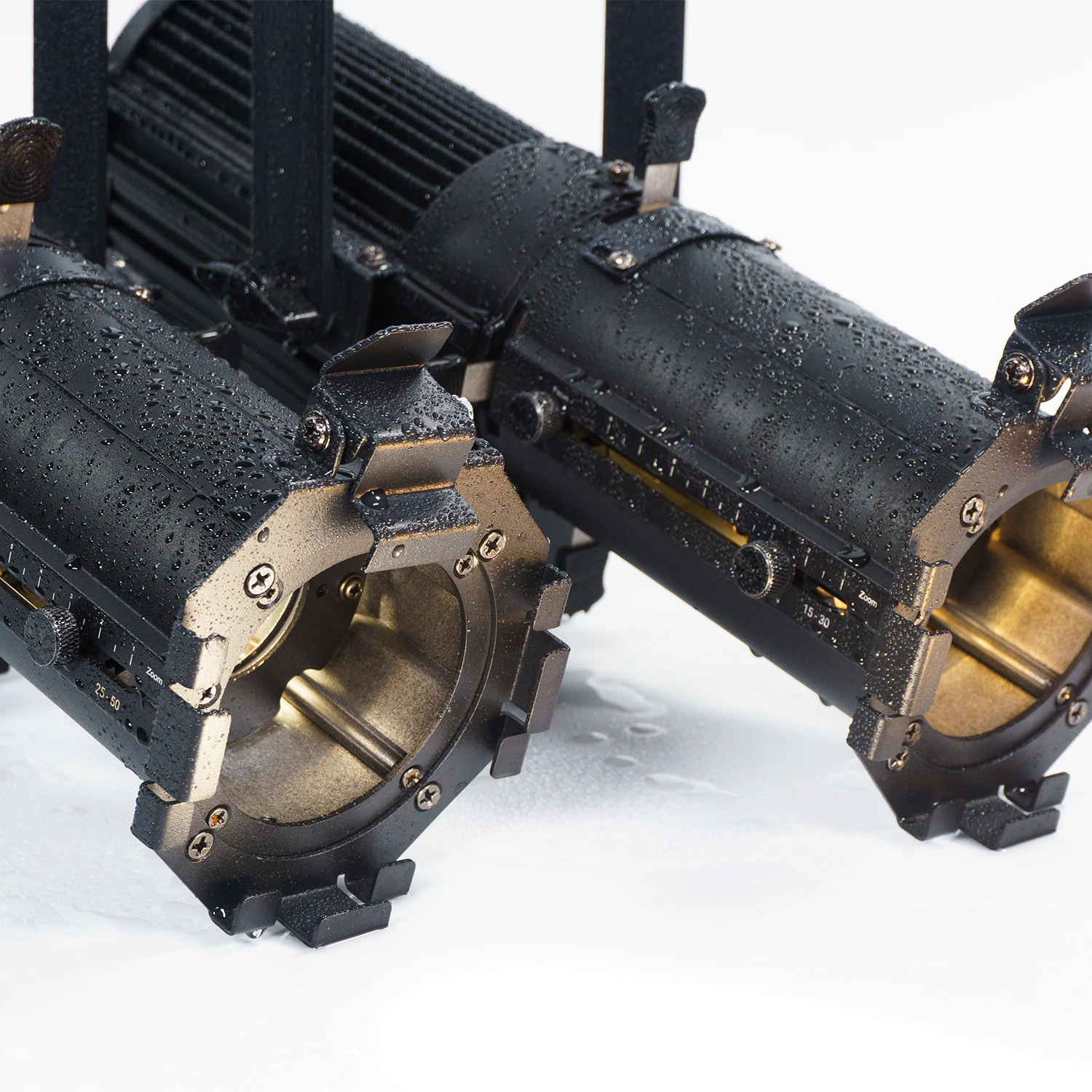

Zoom lens: Panto Leko 60 comes with both 15 – 30 degree lens and 25 – 50 degree lens. These zoom lens covers almost all the regular fixed lens options like 19°, 26°, 36°, 50°. No matter for long or short distance, it’s all covered.

Shutters: With the four shutters on the lens tube, you can precisely control the shape of the light.

Color reproduction: High CRI and TLCI over 92. The high color rendition make sure accurate color reproduction no matter for your art galleries, jewelries, clothes, foods…

IP 65 rated: And one of the biggest feature for the fixture is the IP rated which means it is designed for both indoor and outdoor application.

Accessories included: We provide abundant accessories for the mini leko. Standard include IP power cable, Y splitter DMX cable, color frame, safety cable. And also Y split power cable(for power linking), gobo holder(E-sized) as optional parts.

  • 60W WW + 60W CW constant output LED
  • Color temperature 2700K – 6000K adjustable
  • High CRI over 92
  • Die-casting aluminum housing, fan-free
  • HD optics, 15° – 30° and 25° – 50° zoom lens optional
  • Smooth dimming, flicker free
  • Compact body, easy to set up
  • DMX control of dimmer
  • RDM function available
  • IP65, indoor or outdoor use
  • Support E-sized gobo holder
Instand quoteDatasheet

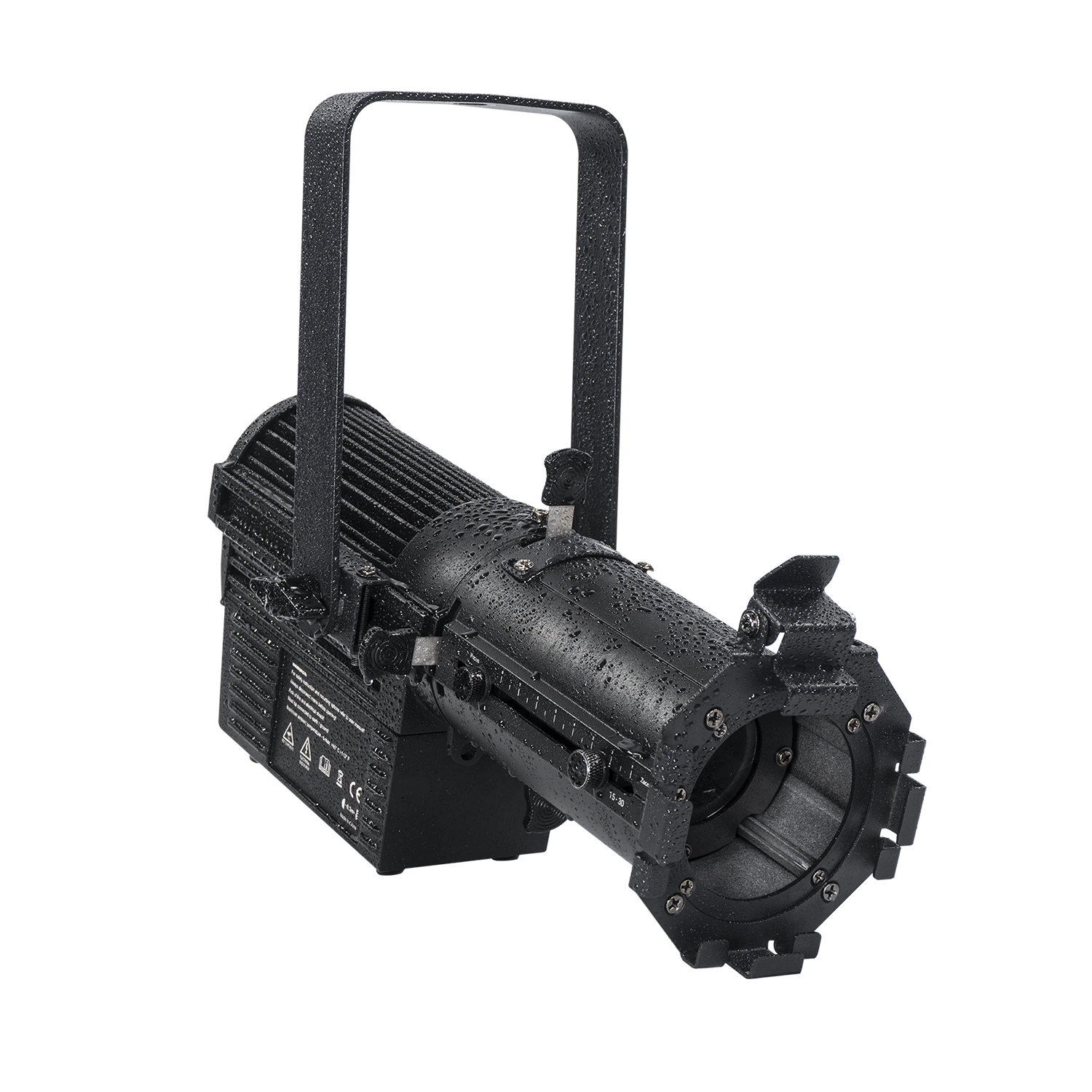

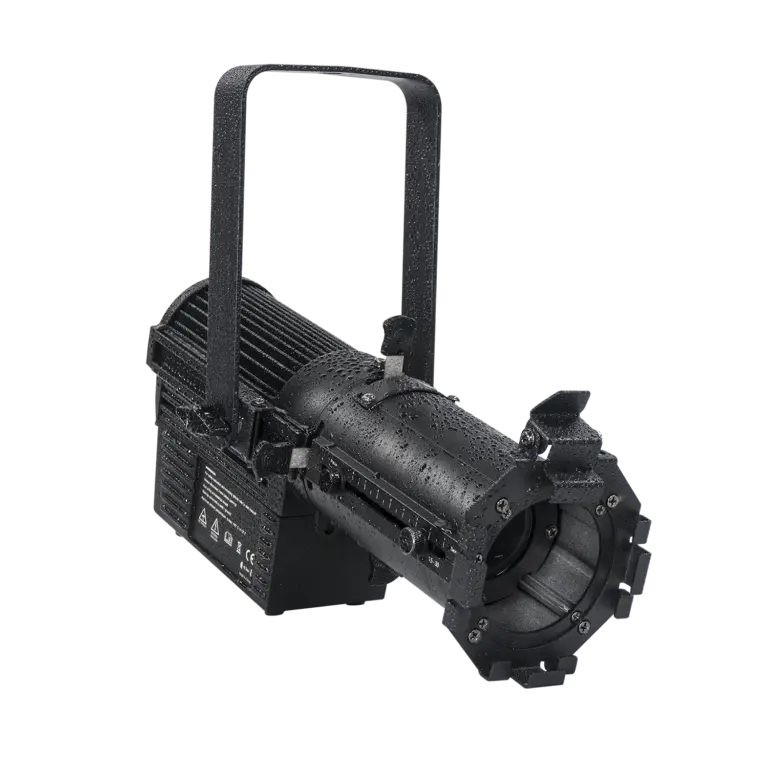

Panto Leko 60 main view waterproof

Product Gallery

Video

Specifications

Physical

  • Length: 344 mm (13.5 in.)
  • Width: 164 mm (6.5 in.)
  • Height: 276 mm (10.8 in.)
  • Net Weight: 3 kg (6.6 lb.)

Dynamic effects

  • Electronic shutter effect: Instant open and blackout
  • Electronic dimming: 0 – 100%
  • Strobe and pulse effects: Variable speed and action, random strobe

Control and programming

  • Control options: DMX, RDM, stand-alone
  • DMX channels: 1/2/3/5
  • Dimmer frequency: 1.2 – 24.0 KHz

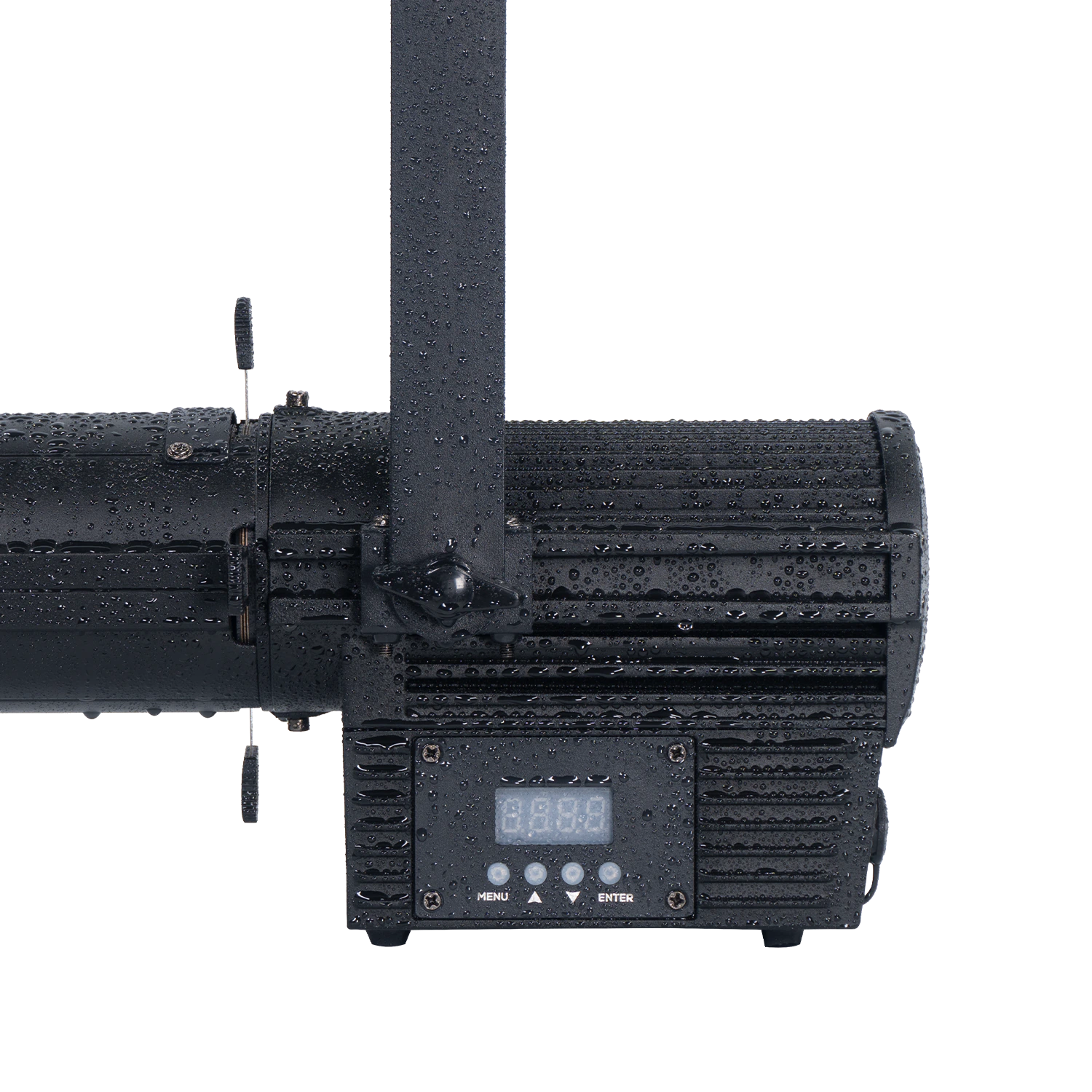

  • DMX address setting: Control panel with LED display or via RDM
  • DMX compliance: USITT DMX512-A
  • RDM compliance: ANSI/ESTA E1.20
  • RDM function available for addressing and settings

Optics

  • Light source: 60W WW+ 60W CW COB LED
  • Color temperature: 2,700K – 6,000K tunable
  • Minimum LED lifetime: 50,000 hours
  • Zoom lens: 15° – 30° or 25° – 50° manual zoom optional

Photometric data

  • CRI (Color Rendering Index) : >92
  • TM-30 Rf (IES TM-30-15 Fidelity Index): >92 (4,000K)
  • TM-30 Rg (IES TM-30-15 Gamut Index): >100 (4,000K)
  • TLCI (Television Lighting Consistency Index): >92 (4,000K)
  • For more information, please refer to the datasheet

Construction

  • Housing: Die-cast aluminum
  • Color: Black

Gobos & color frame

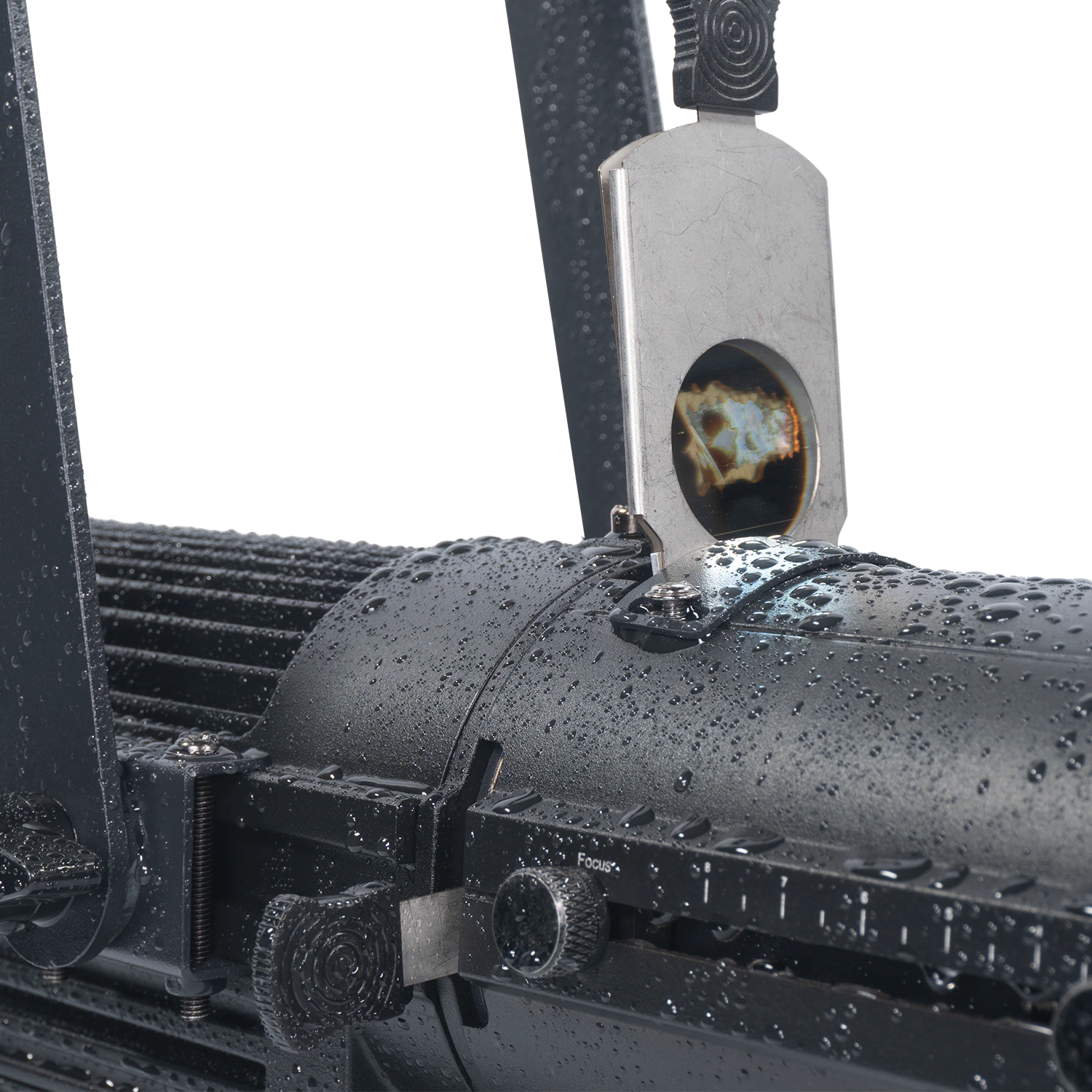

  • Gobo size: Glass gobo, E-sized, OD 37.5mm, image area 25.4mm, maximum thickness 1.2mm
  • Color frame

Installation

  • Mounting: Adjustable bracket
  • Environment: IP65 outdoor use
  • Orientation: Any
  • Minimum distance to combustible materials: 0.2 m (0.7 ft.)
  • Minimum distance to illuminated surfaces: 0.5 m (1.6 ft.)

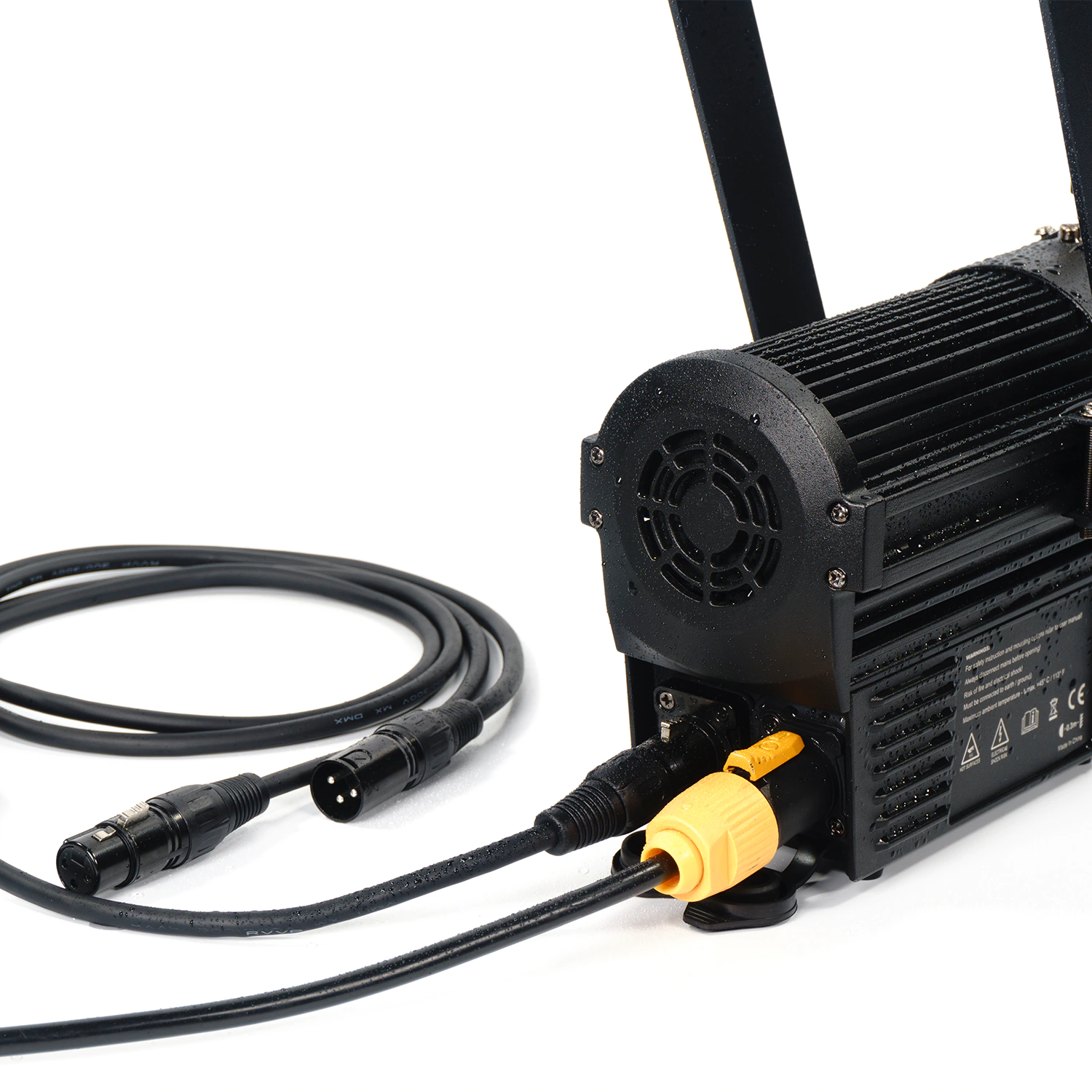

Connections

  • AC power in/thru: IP rated PowerCon in
  • DMX & RDM data in/thru: Y split 3-Pin XLR in & out

Electrical

  • AC power: 100–240 V nominal, 50/60 Hz
  • Power supply unit: Auto ranging power unit

Typical power and current

  • 230 V, 50 Hz: 43 W, PF 0.96
  • Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.

Thermal

  • Cooling: Heat sink, fan-free
  • Maximum ambient temperature (Ta max.): 40° C (104° F)
  • Minimum ambient temperature (Ta min.): -10° C (14° F)

Approvals

  • EU safety: EN IEC 60598-2-17:2018, EN 60598-1:2015+A1:2018
  • EU EMC: EN 55015:2013+A1:2015, CISPR 15:2013+A1:2015, EN 61547:2009, IEC 61000-4-2:2008

Included parts

  • IP rated powerCon cable
  • Color frame
  • User manual

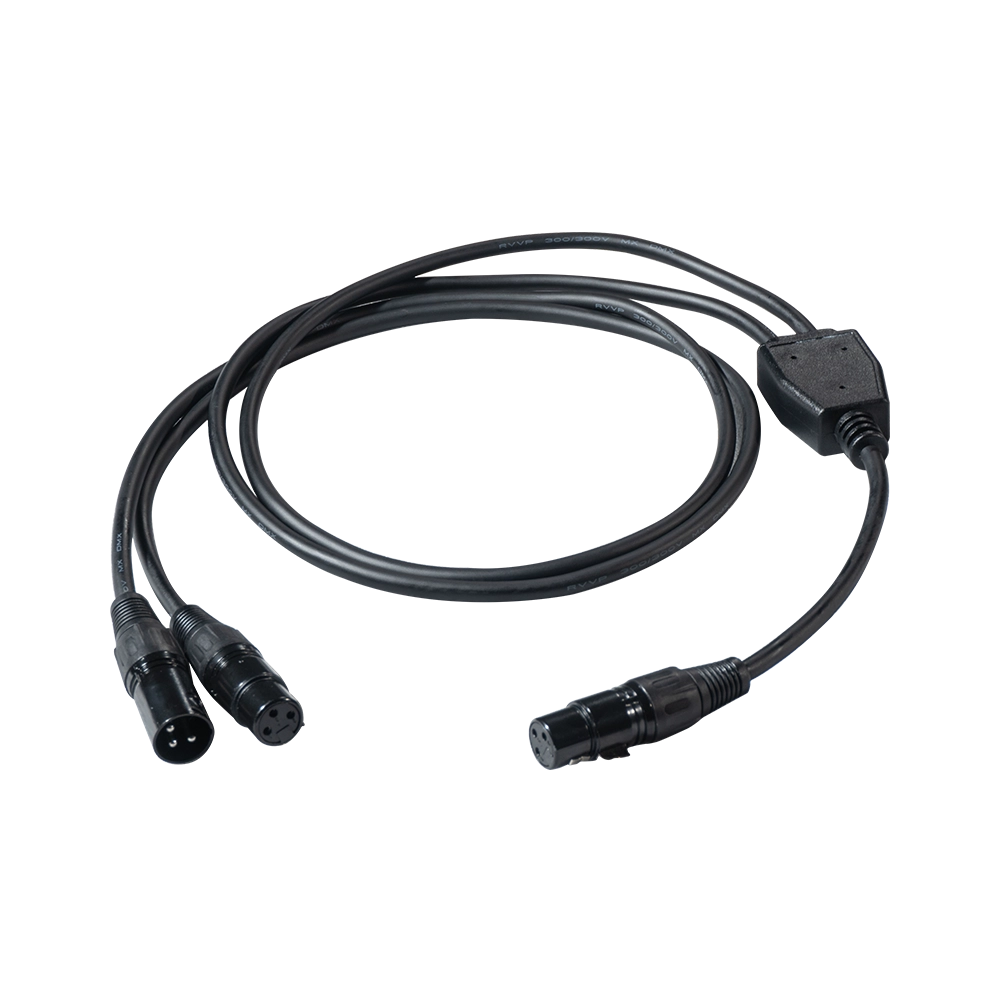

  • Y split DMX cable 3-pin

Optional parts

  • Mounting bracket
  • Gobo holder(E-sized)
  • Y split IP powerCon connection cable
Download PDF datasheet*Specifications subject to change without notice.*

Accessories

Documents

Get a Quote

Frequently asked questions

  • What accessories does it have?

    Standard accessaries: power cable(plug according to your needs), Y split DMX cable, Safety cable, Color frame.

    Optional accessaries: Y split power cable(for power linking fixtures), Gobo holder, Clamp.

  • How do I connect DMX since it has only DMX input?

    We do provide Y split DMX cable in shipment so you can link fixtures with it. As the fixture is small, the size is limited to build DMX in / out socket.

  • Can you make power in and out socket?

    Sorry we can’t, as the size limit for the fixture. However, thanks to it’s true1 connector, we do provide a Y split power cable as optional. You can power link with this Y split power cable.

  • Do you have white body?

    No black body at this moment. But for future, if many clients required, we may do white body.

  • What size is the Gobo?

    E-sized, glass gobo, OD 37.5mm, image area 25.4mm, maximum thickness 1.2mm.
