Mini Leko 20

20Watt LED ellipsoidal fixed lens for church, exhibition, art gallery

Mini Leko 20 is a tiny 20W COB LED profile spot. Die-casting housing, fan-free design. With 19°, 26°, 36°, 50° lens optional, and portable, track mount version selectable. It’s an idea product for art gallery, Museum, Shopping mall.

Mini gallery light: A perfect product for art gallery, museums, shops for accent lighting. The four shutters make it super convenient to control the shape of light.

Compact design: Mini Leko 20 is super compact in size, and weight only 1.5kg.

Bright output: Thanks to its 20Watt COB LED, the fixture come with very efficient, even and bright output.

Color temperature: Fixture comes with a selectable color temperature of 3200K, 4000K or 5600K. Meet all your requirement for different applications.

Accurate color reproduction: High CRI over 92 and high TLCI, CQS assures perfect color reproduction. Best for art galleries, museums, restaurants, shops.

Smooth dimming: Mini Leko 20 comes with 1 channel mode and is smooth in dimming.

DMX and on board control: The fixture support standard DMX 512 protocol, and we offer 3-pin DMX or 5-pin optional. Moreover, you can also control the dimmer(brightness) from the LED display power box.

Durable body: The item is bult with die-casting aluminum. Good built quality and durable.

  • 20W COB LED, high lumen
  • 3200K, 4000K or 5600K color temperature
  • High CRI of 92
  • DMX 512 and on board control of brightness
  • Die-casting aluminum housing, fan-free
  • 19°, 26°, 36°, 50° lens selectable
  • Smooth dimming, flicker free
  • Compact body, easy to set up
  • Track mount version selectable
  • Fresnel version selectable
Instand quoteDatasheet

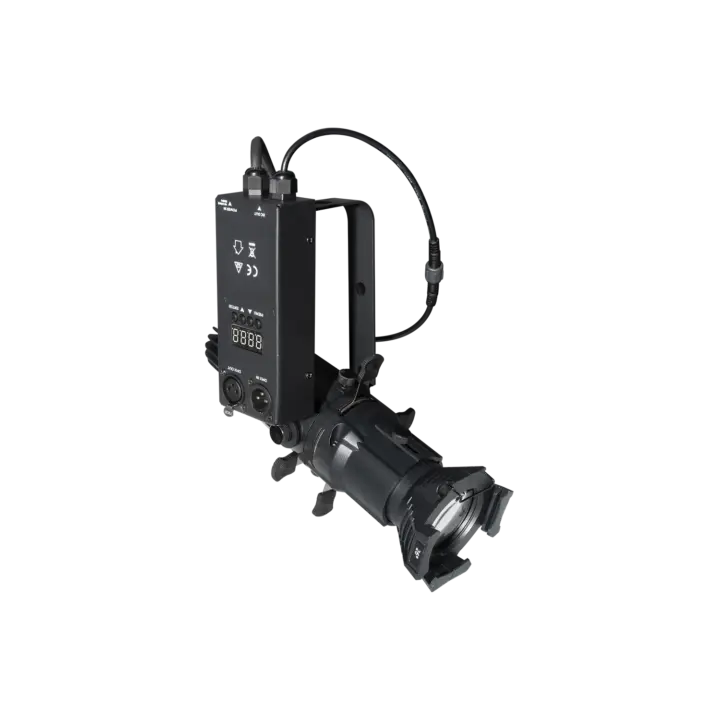

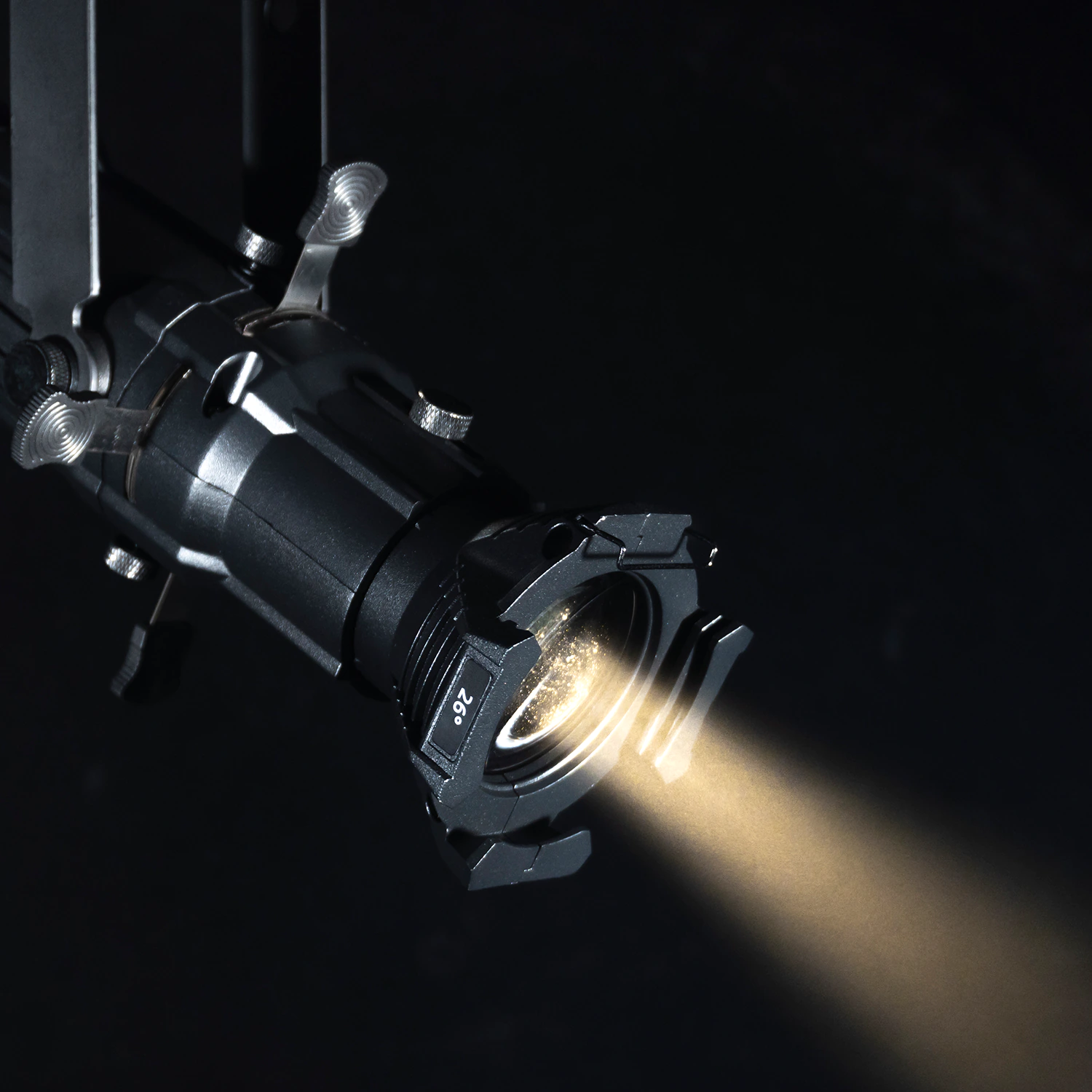

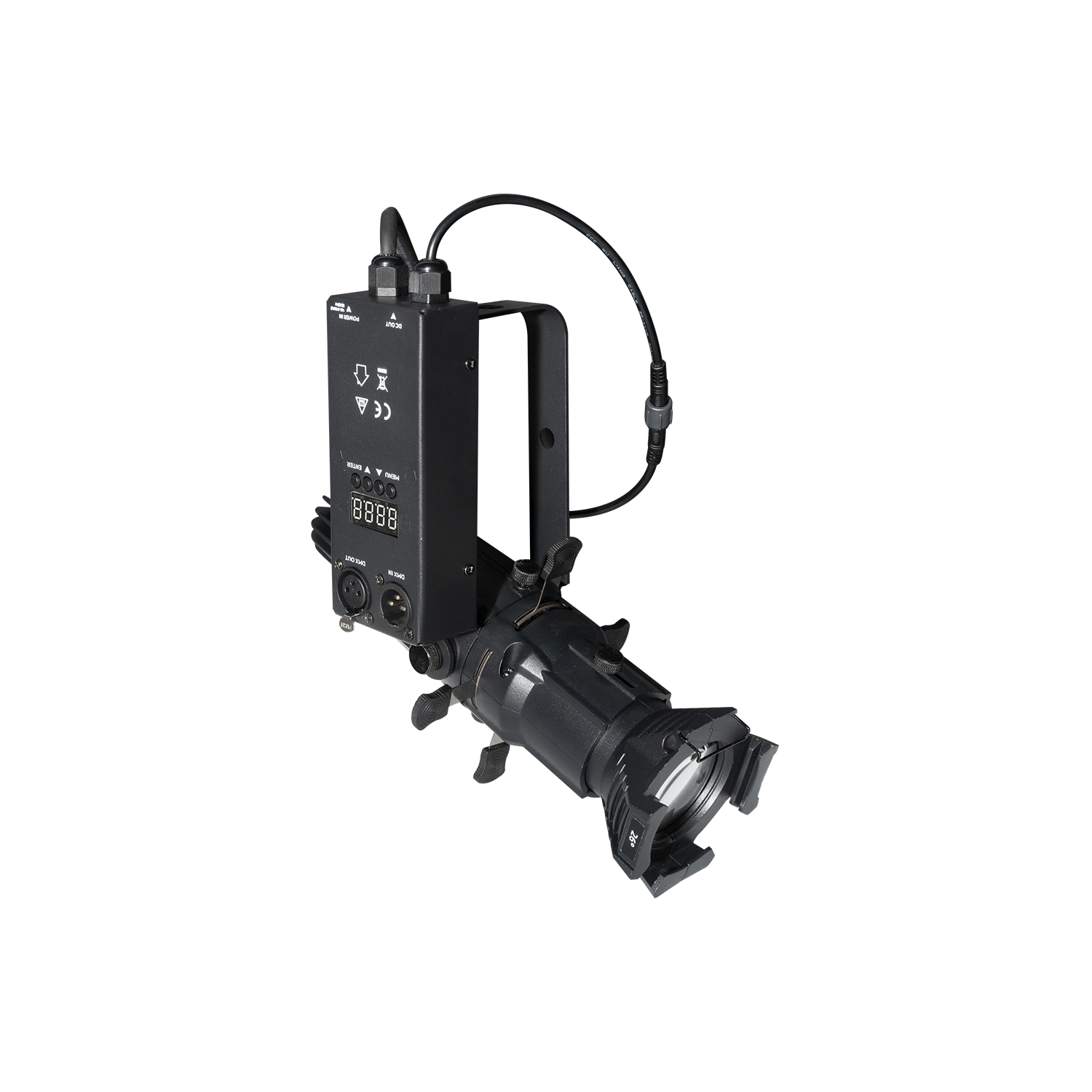

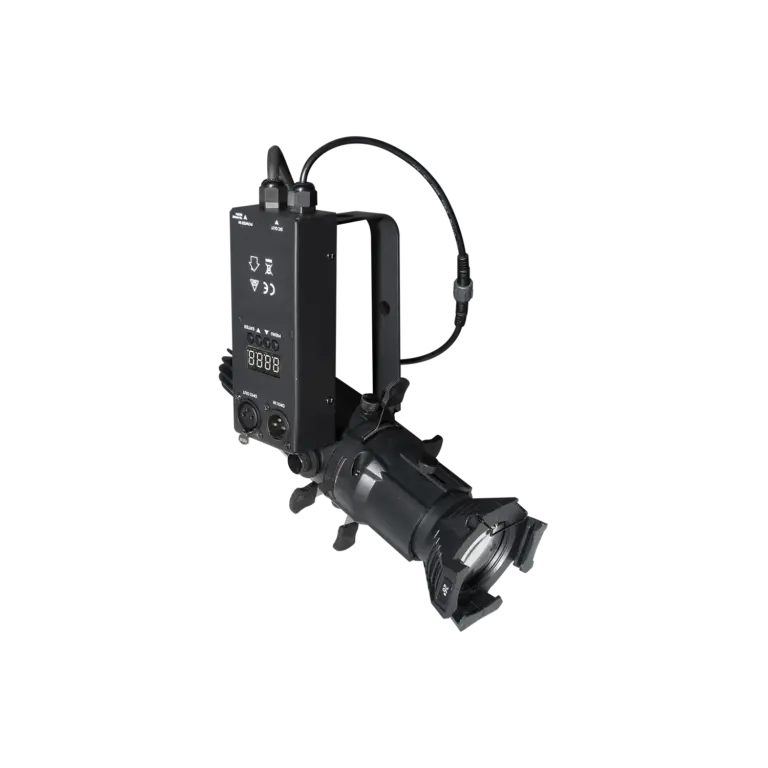

Mini Leko 20 main view

Product Gallery

Innovation Highlights

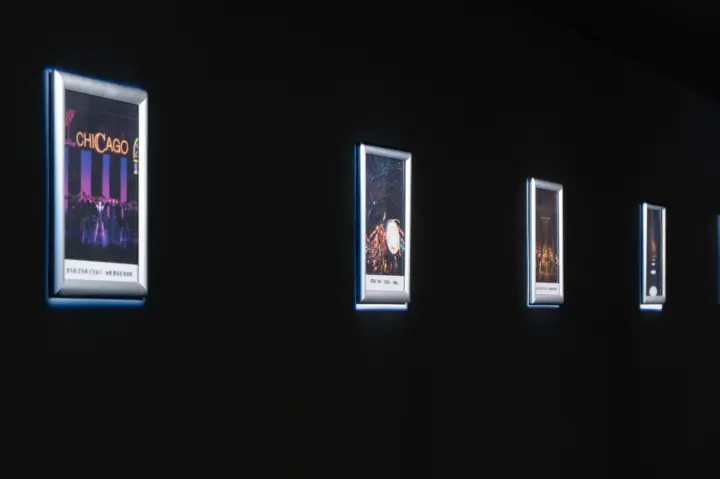

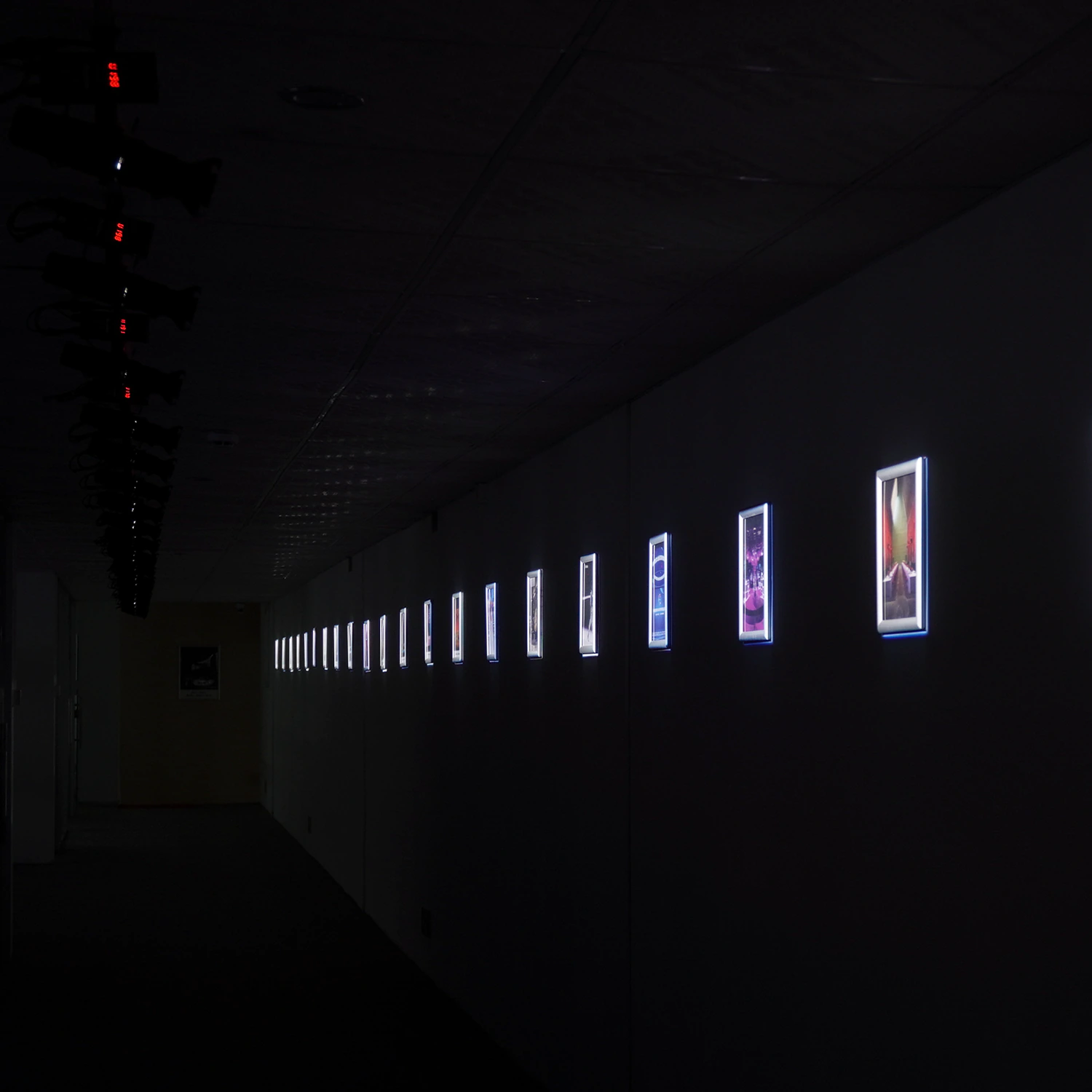

Accent lighting

Framing function

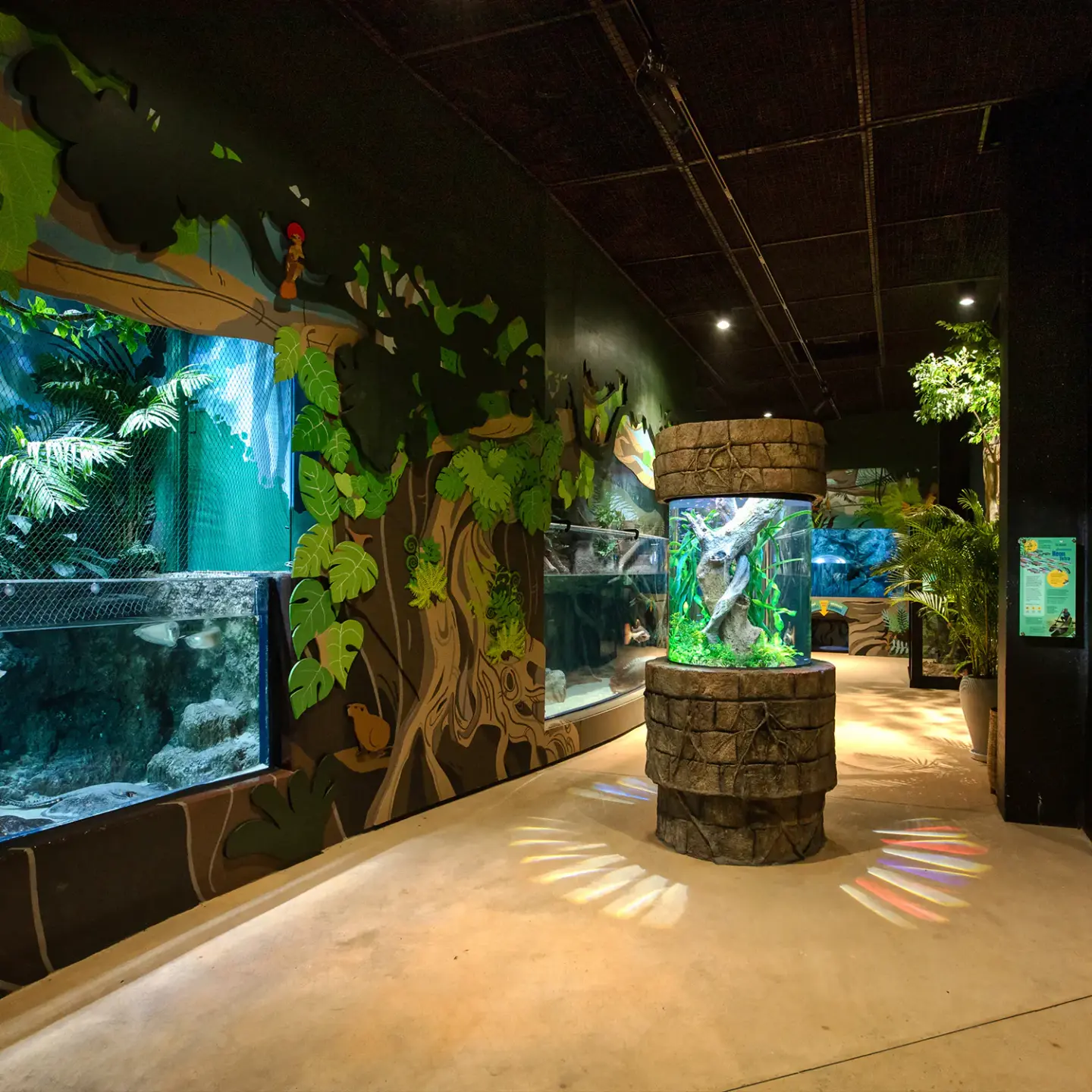

Equipped with 4 shutter blades, you can control the shape of light easily. Super idea when you need to light up art galleries, museums, Aquarium, shops, restaurents where accent lighting is needed.

Lens option

Industry standard lens

The Mini Leko 20 offers lens option of 19°, 26°, 36°, 50°. Makes it possible for short or long distance illumination.

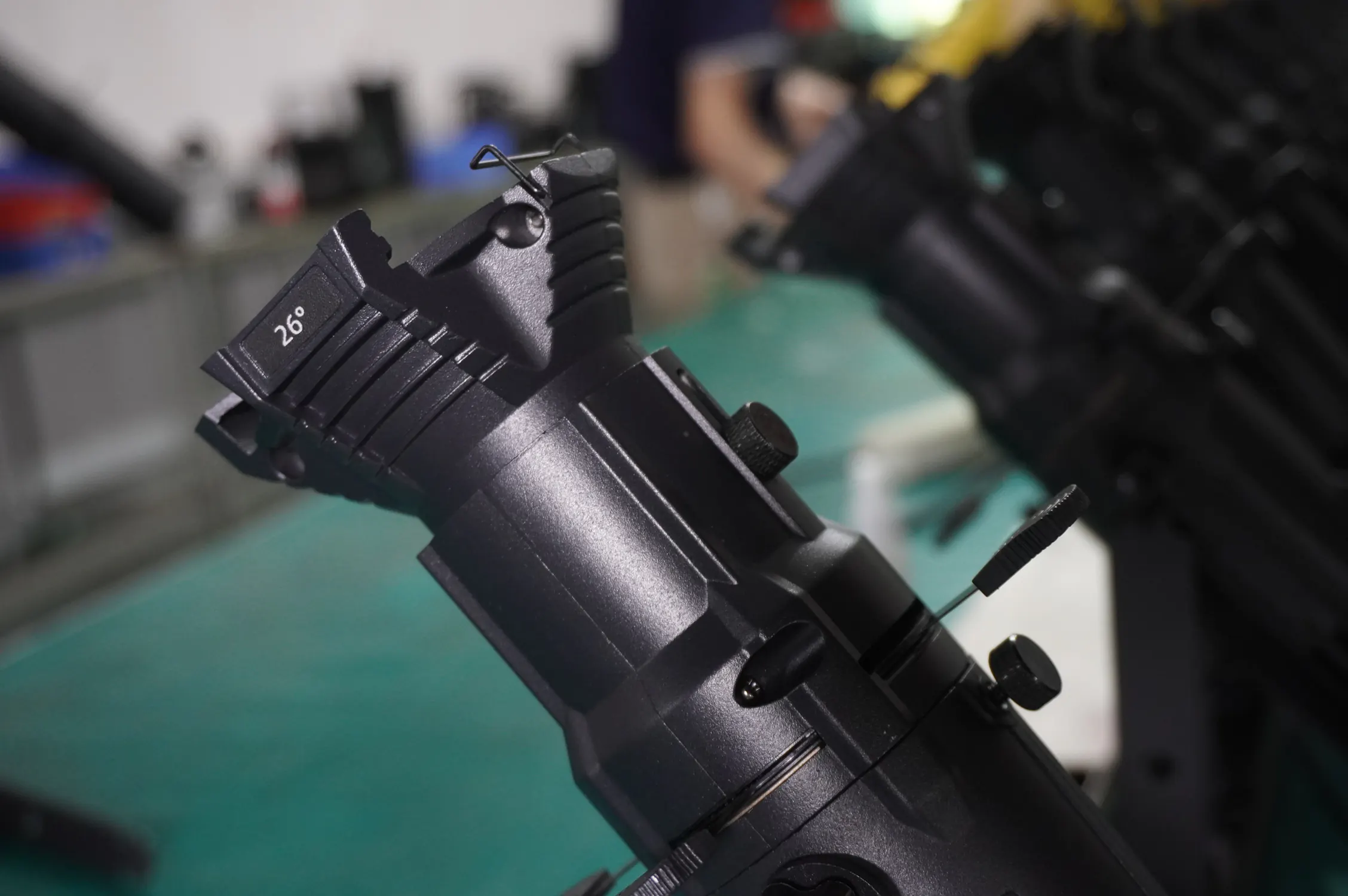

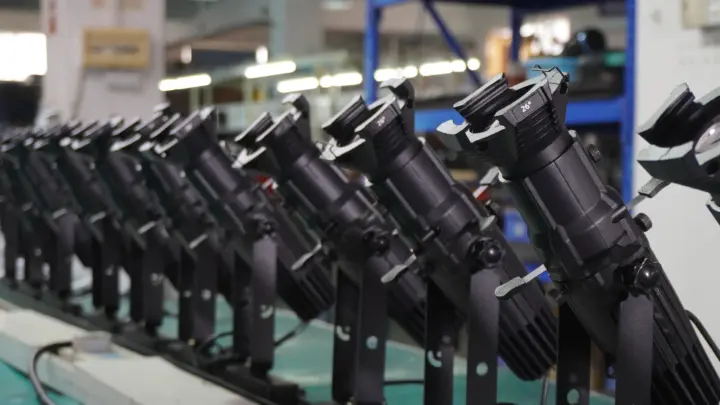

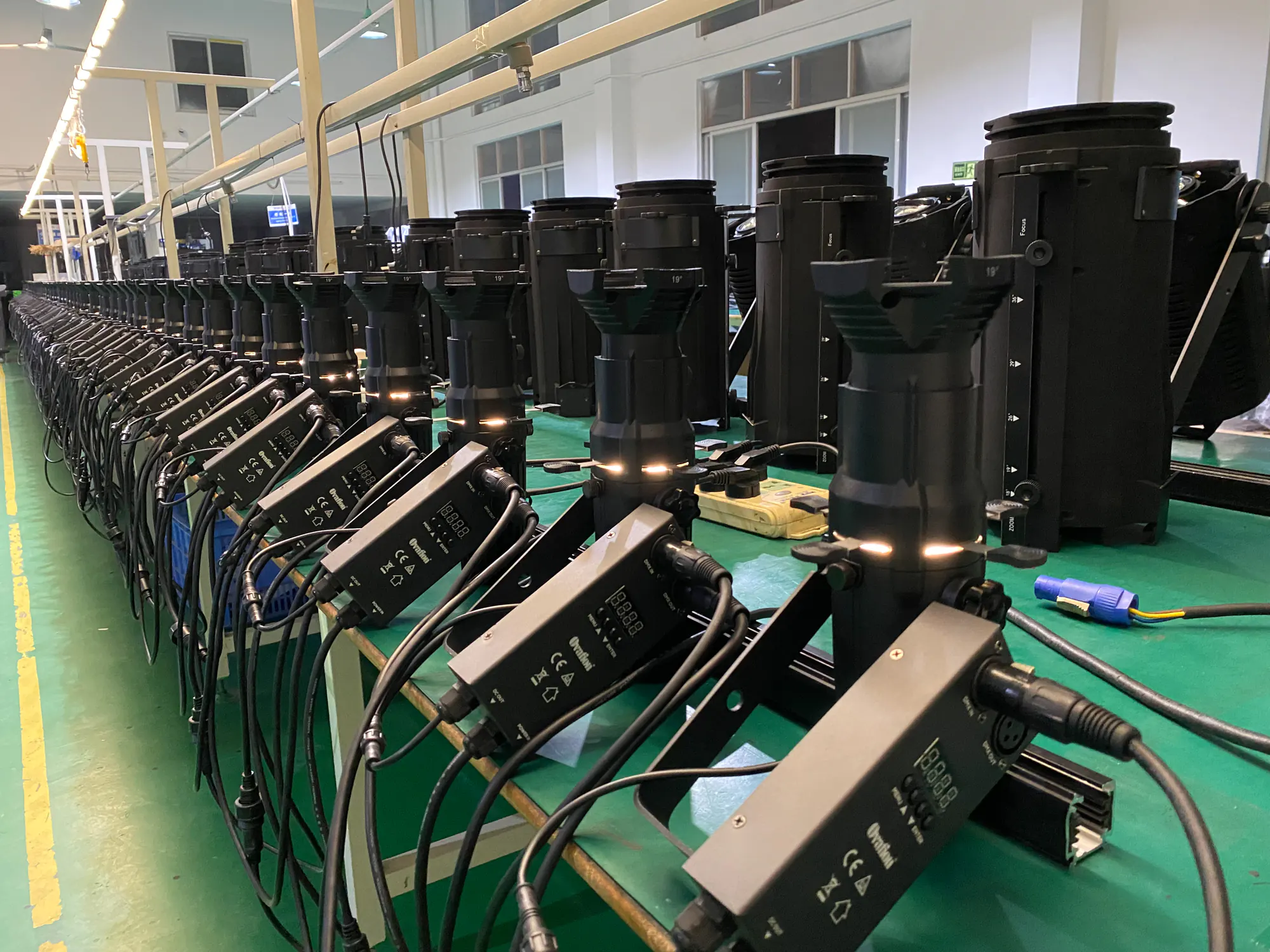

Mini Leko 20 on production line showing lens degree
Color temperature

Color temperature

We offer three types of white color temperature option for the Mini Leko 20, 3200K, 4000K or 5600K. All of them featured high CRI and long life LED technology

Mini Leko 20 with different color temperature
Body color

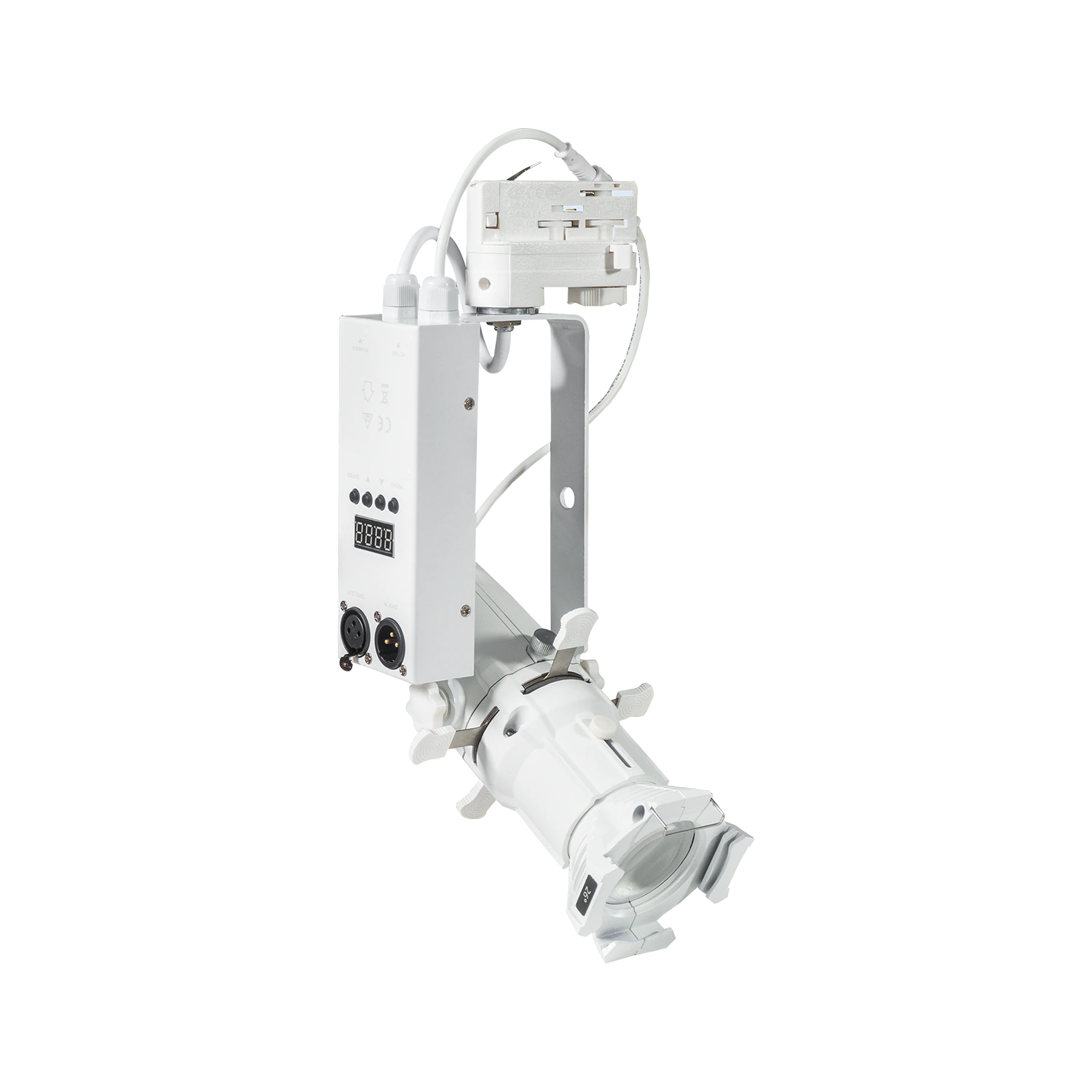

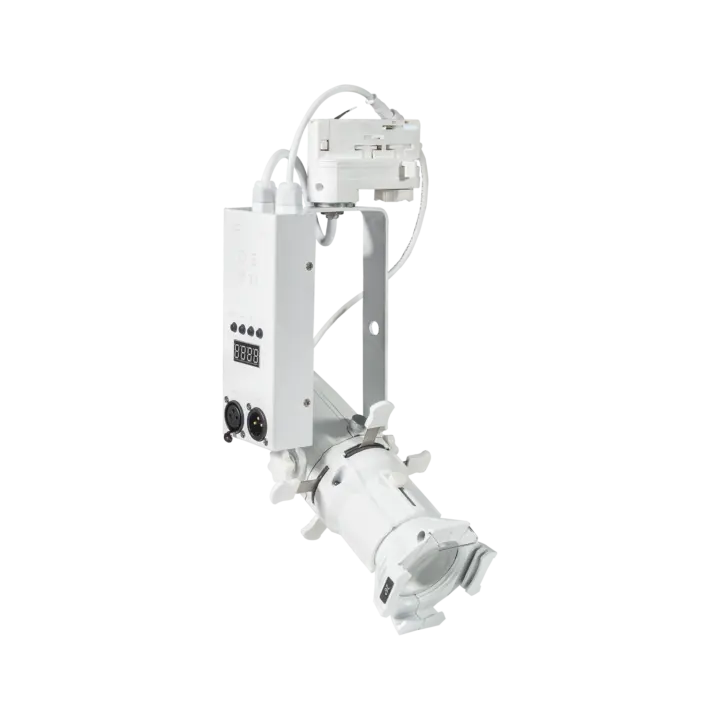

Black or white body

For the Mini Leko 20, we offer both black or white body as option. Freely choose which one that is suitable for your project.

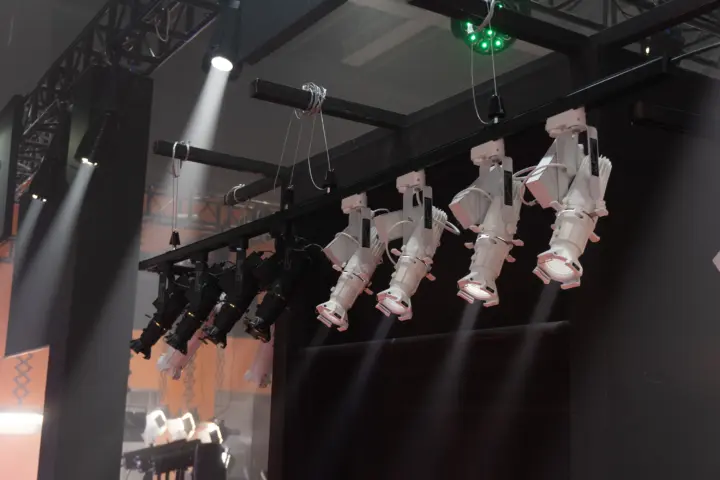

Ovation track lights on exhibition

Video

Specifications

Physical

  • Length: 309 mm (12.2 in.)
  • Width: 143 mm (5.6 in.)
  • Height: 105 mm (4.2 in.)
  • Net Weight: 1.5 kg (3.3 lb.)

Dynamic effects

  • Electronic shutter effect: Instant open and blackout
  • Electronic dimming: 0 – 100%
  • Strobe and pulse effects: Variable speed and action, random strobe

Control and programming

  • Control options: DMX, RDM, stand-alone
  • DMX channels: 1
  • Dimmer frequency: 1.2 – 24.0 KHz
  • DMX address setting: Control panel with LED display or via RDM
  • DMX compliance: USITT DMX512-A
  • RDM compliance: ANSI/ESTA E1.20
  • RDM function available for addressing and settings

Optics

  • Light source: 20W COB LED
  • Color temperature: 3,200K, 4,000K or 5,600K optional
  • Minimum LED lifetime: 50,000 hours
  • Fixed lens option: 19°, 26°, 36°, 50°

Photometric data

  • 3,200K 317lux @5m 26°
  • CRI (Color Rendering Index) : >92
  • TM-30 Rf (IES TM-30-15 Fidelity Index): >94
  • TM-30 Rg (IES TM-30-15 Gamut Index): >102
  • TLCI (Television Lighting Consistency Index): >97
  • For more information, please refer to the datasheet

Construction

  • Housing: Die cast aluminum
  • Color: Black or white

Gobos & color frame

  • Gobo size: E sized, OD 37.5mm, image area 28mm
  • Color frame size: 60 x 60mm (2.4 in. x 2.4 in.)

Installation

  • Mounting: Adjustable bracket
  • Environment: IP20 indoor use
  • Orientation: Any
  • Minimum distance to combustible materials: 0.2 m (0.7 ft.)
  • Minimum distance to illuminated surfaces: 0.5 m (1.6 ft.)

Connections

  • AC power in/thru: Dedicated power in
  • DMX & RDM data in/thru: 3-Pin XLR in & out

Electrical

  • AC power: 100–240 V nominal, 50/60 Hz
  • Power supply unit: Auto ranging power unit

Typical power and current

  • 230 V, 50 Hz: 20 W, PF 0.96
  • Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.

Thermal

  • Cooling: Passive cooling (fan free, no noise)
  • Maximum ambient temperature (Ta max.): 40° C (104° F)
  • Minimum ambient temperature (Ta min.): -10° C (14° F)

Approvals

  • EU safety: EN IEC 60598-2-17:2018, EN 60598-1:2015+A1:2018,
  • EU EMC: EN 55015:2013+A1:2015, CISPR 15:2013+A1:2015, EN 61547:2009, IEC 61000-4-2:2008

Included parts

  • Power cable
  • Color frame
  • Safety cable
  • User manual

Optional parts

  • Clamp
  • Glass gobo holder (E-sized)
Download PDF datasheet
Dimension drawing Mini Leko 20
*Specifications subject to change without notice.*

Accessories

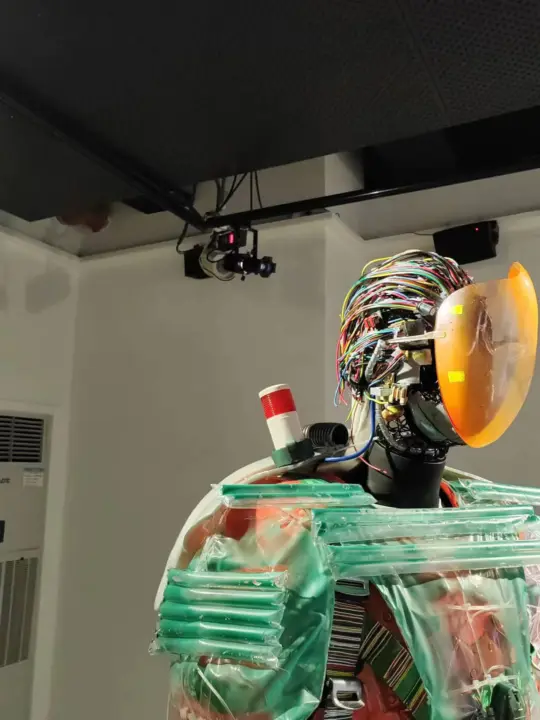

Application

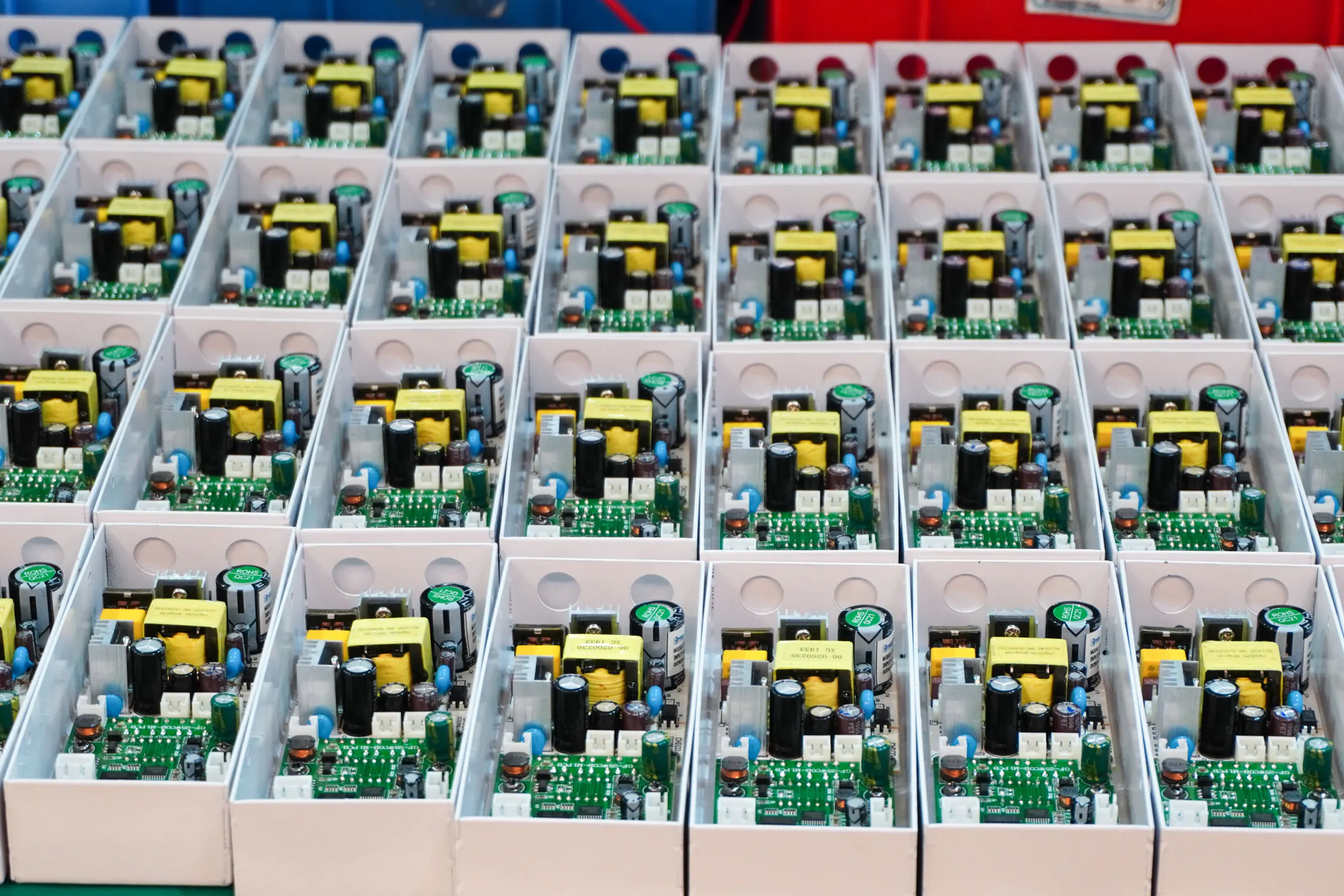

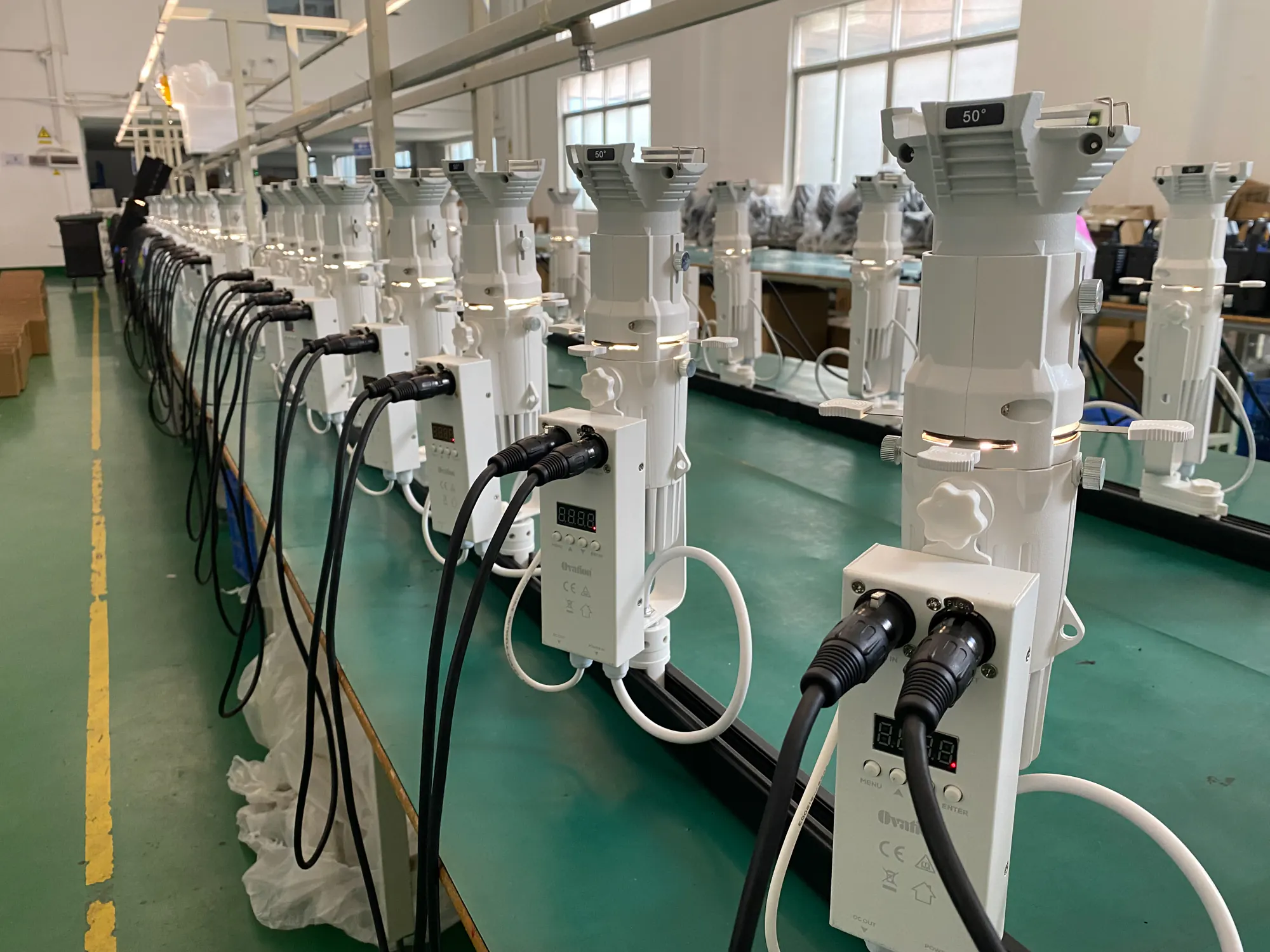

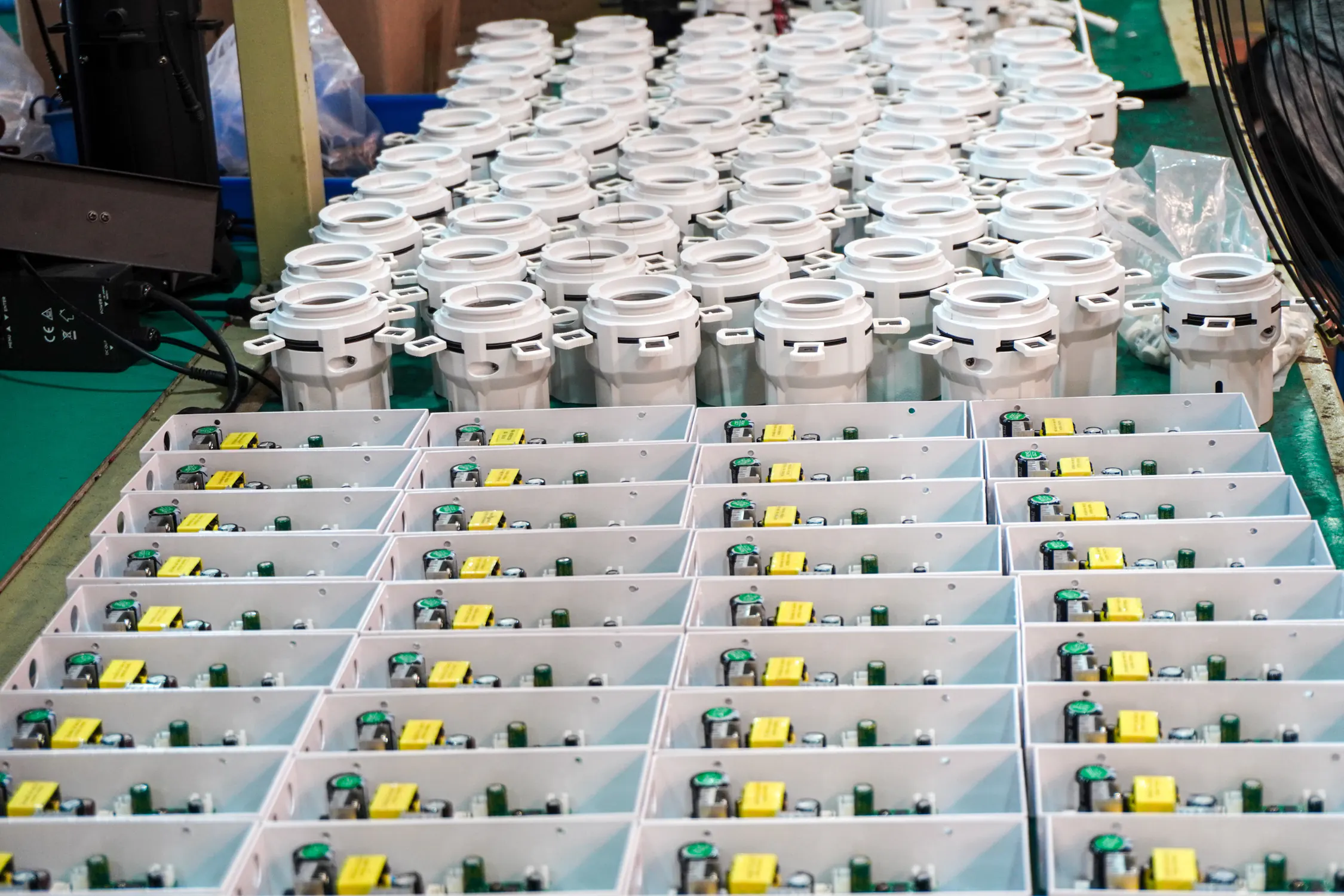

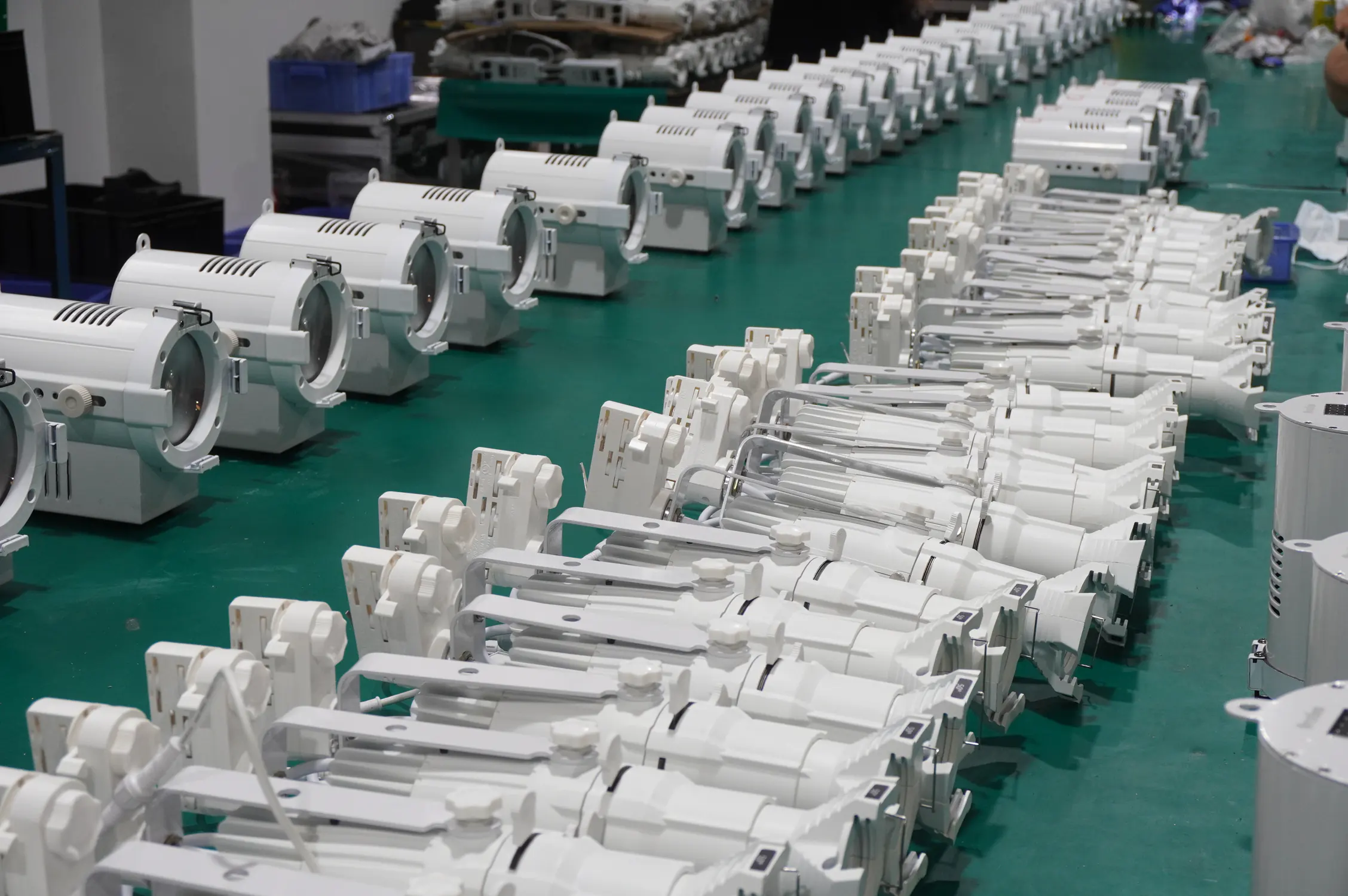

Production Line Gallery

Documents

Get a Quote

Frequently asked questions

  • Does the power cable have plug?

    Yes, every unit have plug, and we’ll prepare according which type of plug you need.

  • Is the lens included in delivery or do I have to purchase it separately?

    Yes, the lens is included as standard. No need to purchase it separately. Just let us know which degree of lens you will need.

  • Can I purchase the lenses separetely?

    Yes, you can. The Mini Leko 20 consist of LED engine, barrel, lens. The difference of degree is in the lens. If you need to replace, just purchase a different lens degree.

  • Is color frame included?

    Yes, color frame is standard part, included in every delivery.

  • Is gobo holder included?

    Gobo holder is optional part. If you need, please contact us for purchase.

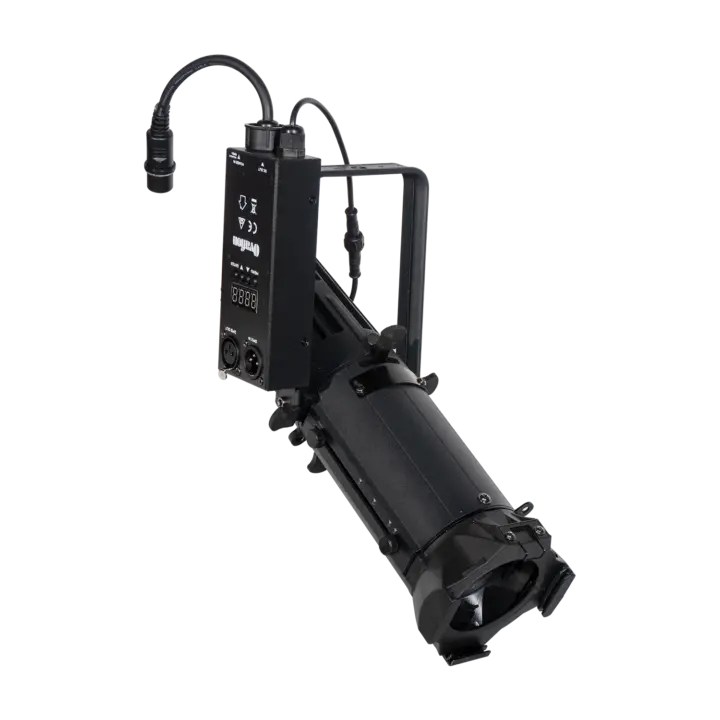

  • Do you have zoom version?

    Yes, we do have zoom version. Check Mini Profile 40Z.

  • Do you have tunable white version?

    Yes, we do have tunable version, our model name S20T.

  • Do you have white body?

    Yes, the Mini Leko 20 is available in both black and white body.

  • Do you have more powerful version?

    Yes sure. Checkout our 40Watt version – X40. It’s just a little bit bigger but even brighter. They share same lens, barrel, colro frame, gobo holder.

  • Does it support DMX?

    Yes, it support DMX 512. Freely control the dimming via your DMX console.

  • Does it compatible with ETC Source Four Mini?

    Yes it is compatible. If you have the Source Four Mini Lens + barrel, you can use it on our fixture.

  • Do you have track version?

    Yes, we have track version. Please check Space Mini Profile 20.
