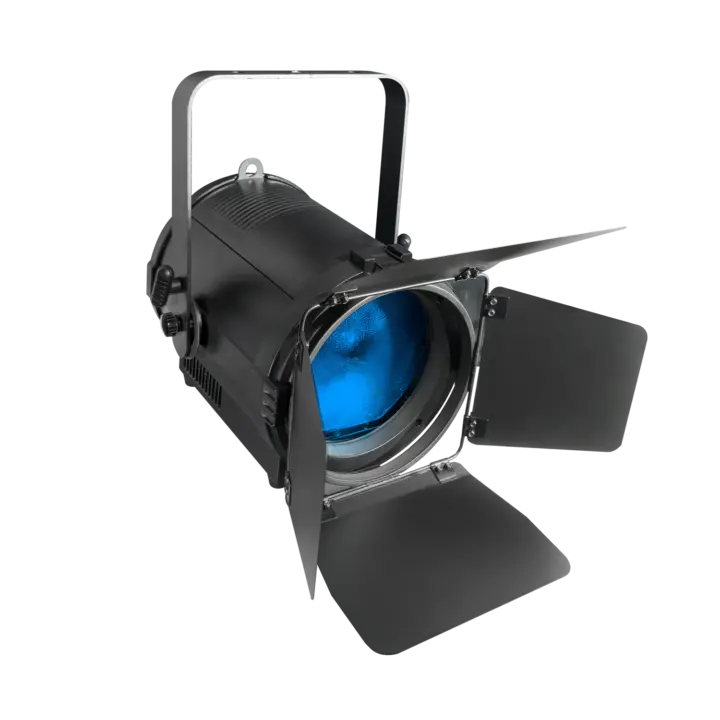

Event 200C

200Watt RGBL LED fresnel/par manual zoom

Event 200C is a 200Watt powered LED fresnel with zoom function.The RDM-DMX compliant, 25 – 65 degree manual zoom along with it’s even and flat RGBL color mixing make this fixture a good replacement for the traditional fresnels and more color option compare to white LED fresnel.

Super compact: The Event 200C weighs only 3.6kg, it is super compact and light weight and idea for event and installation.

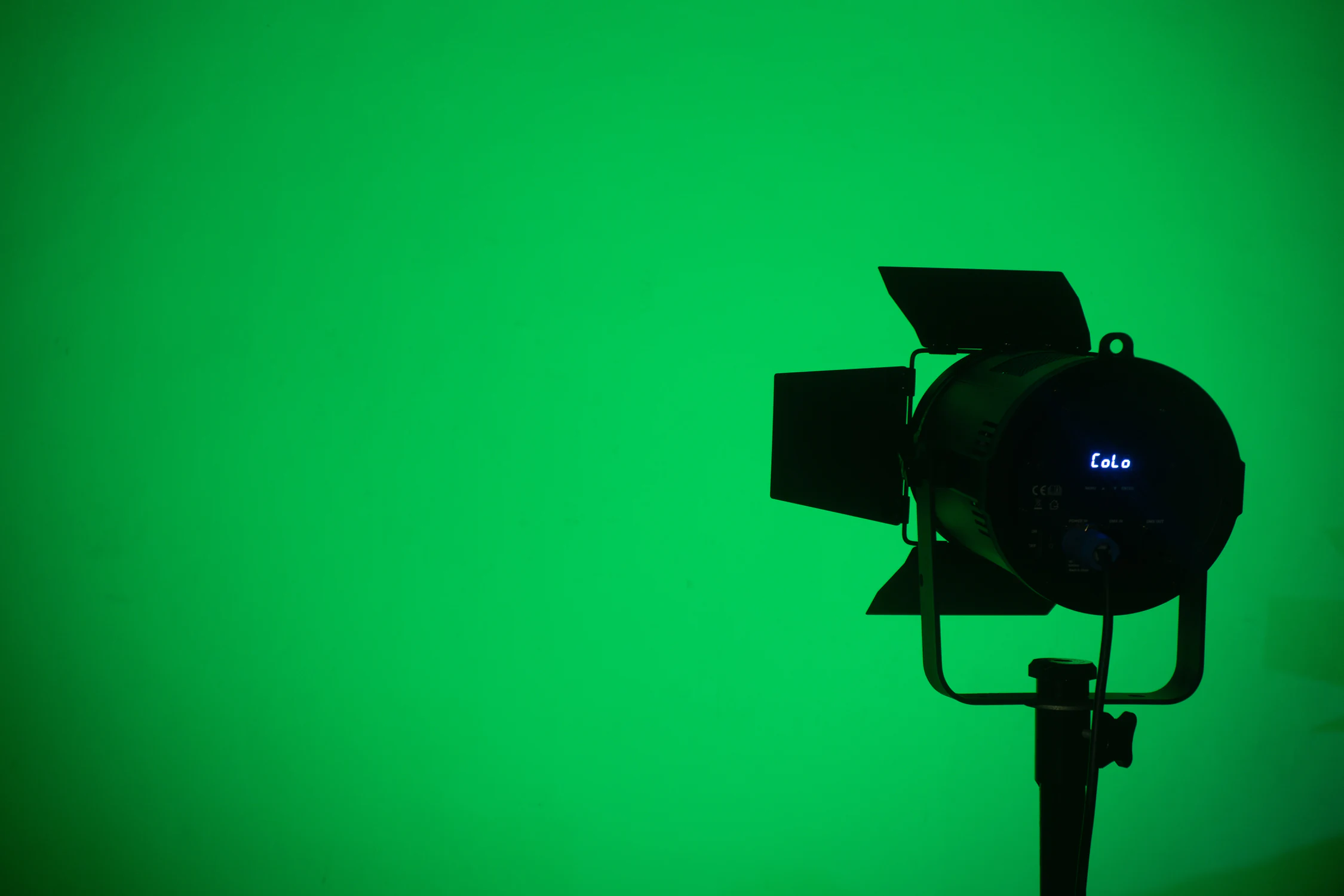

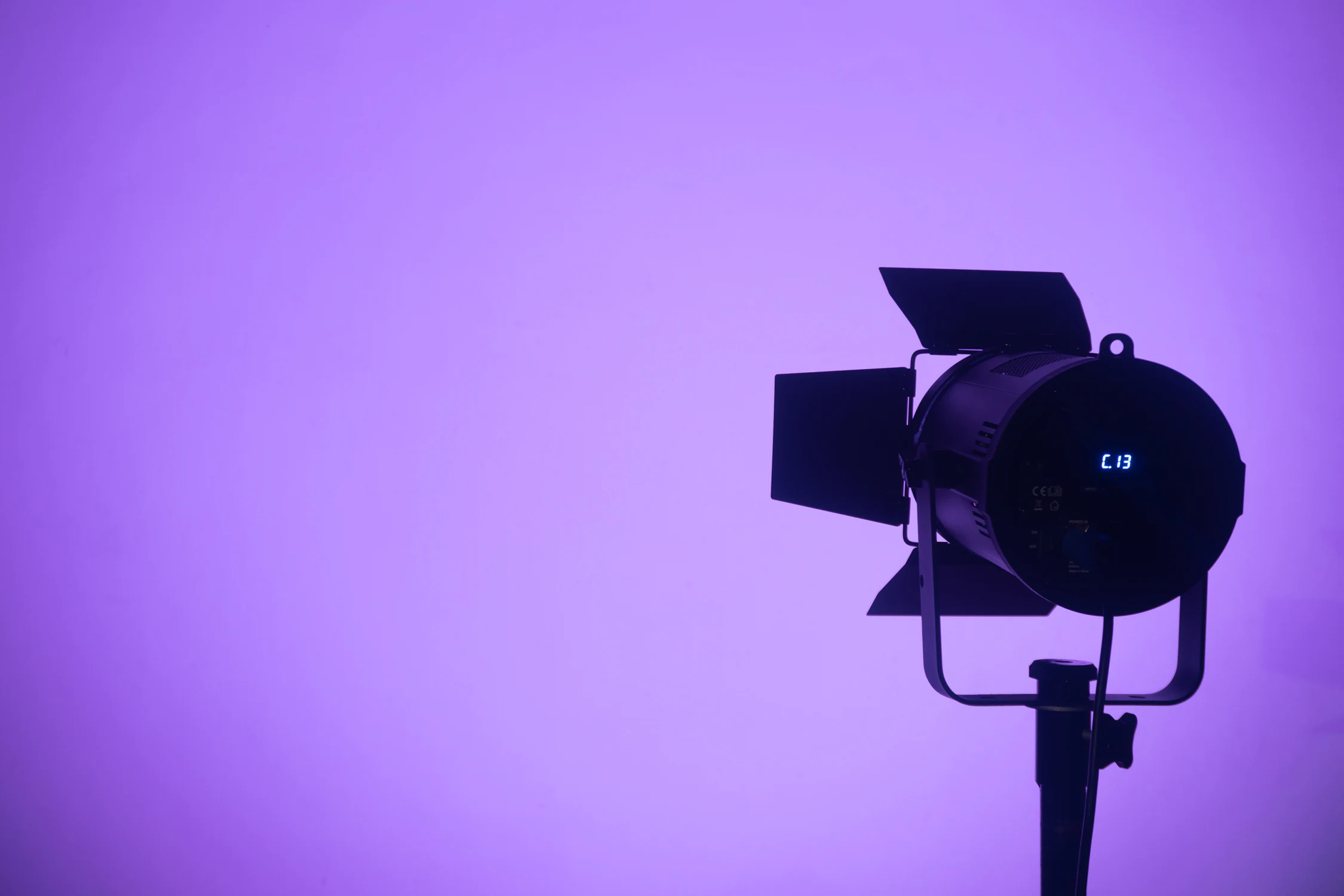

Color mixing: Event 200T equipped with a powerful RGBL LED, it create flat and event color mixing.

Powerful output: 200Watt LED light source, it is more powerful and more energy saving then lamp product. Creating much lower heat.

Beam angle adjustable (Zoom): 25 – 65 degree manual zoom makes it possible to use in short and long distance throw.

High CRI: with the RGBL source, it is possible to get 80 CRI in CT channel.

 CDM-T LED replacement: Due to EU policy, CDMT lamp will need to be replaced. And this is a great time and suitable product for the replacement.

Fresnel / Par light: The Event 200C  can be used as fresnel light and also act as a par light.

Event and exhibition light: Due to the above features, you can find the event 200C is born to be lighting product for event and exhibitions.

  • 200Watt high power LED
  • RGBL color mixing(RGBW optional)
  • High CRI over 80(CT channel)
  • Super compact body, easy to carry and set up
  • Soft and even wash effect
  • 25° – 65° manual zoom
  • Smooth dimming, flicker free
  • Knob control for dimmer, color, CCT
  • DMX, RDM control
  • Dimmer curves selectable
  • Powercon in out connection
Instand quoteDatasheet
New

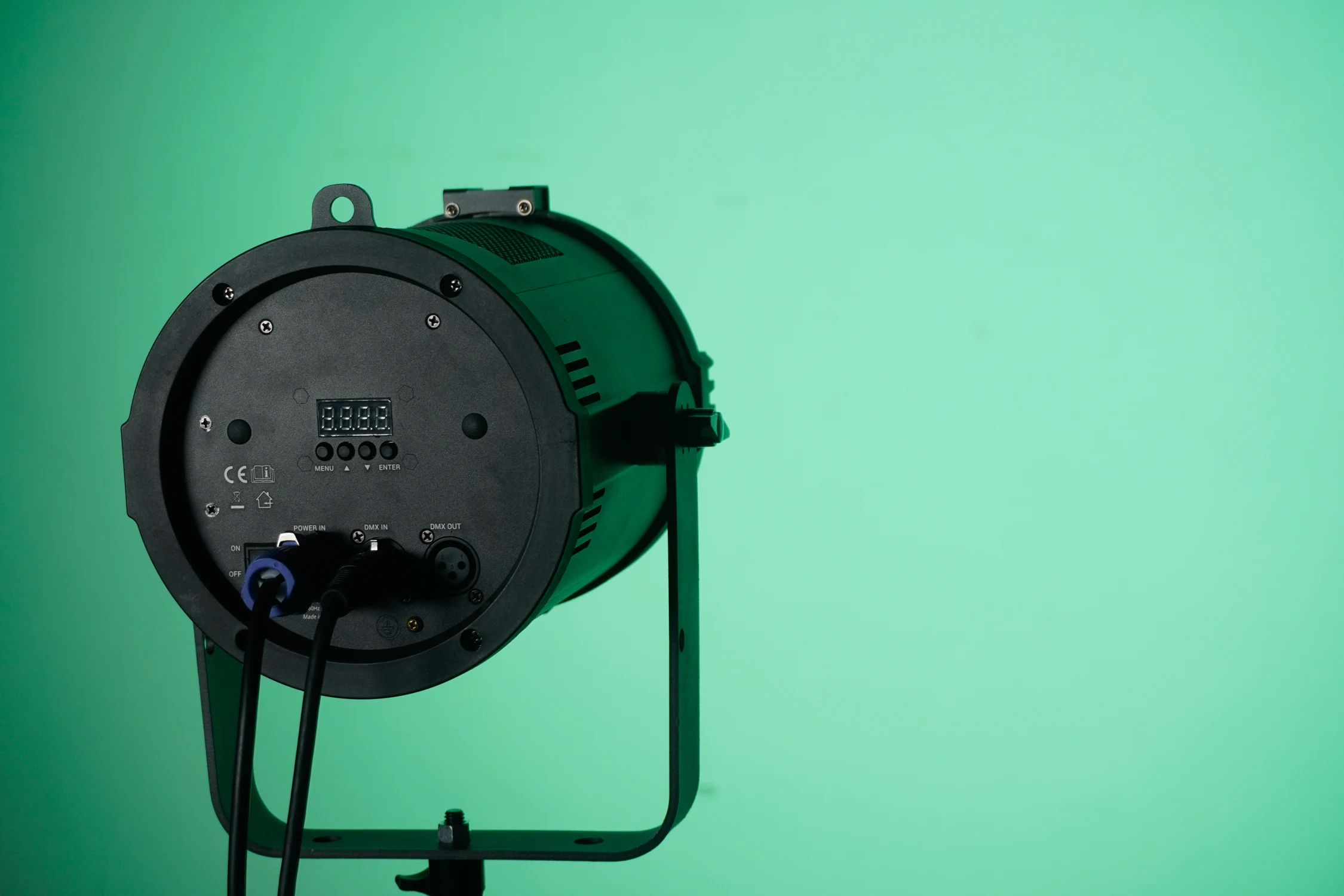

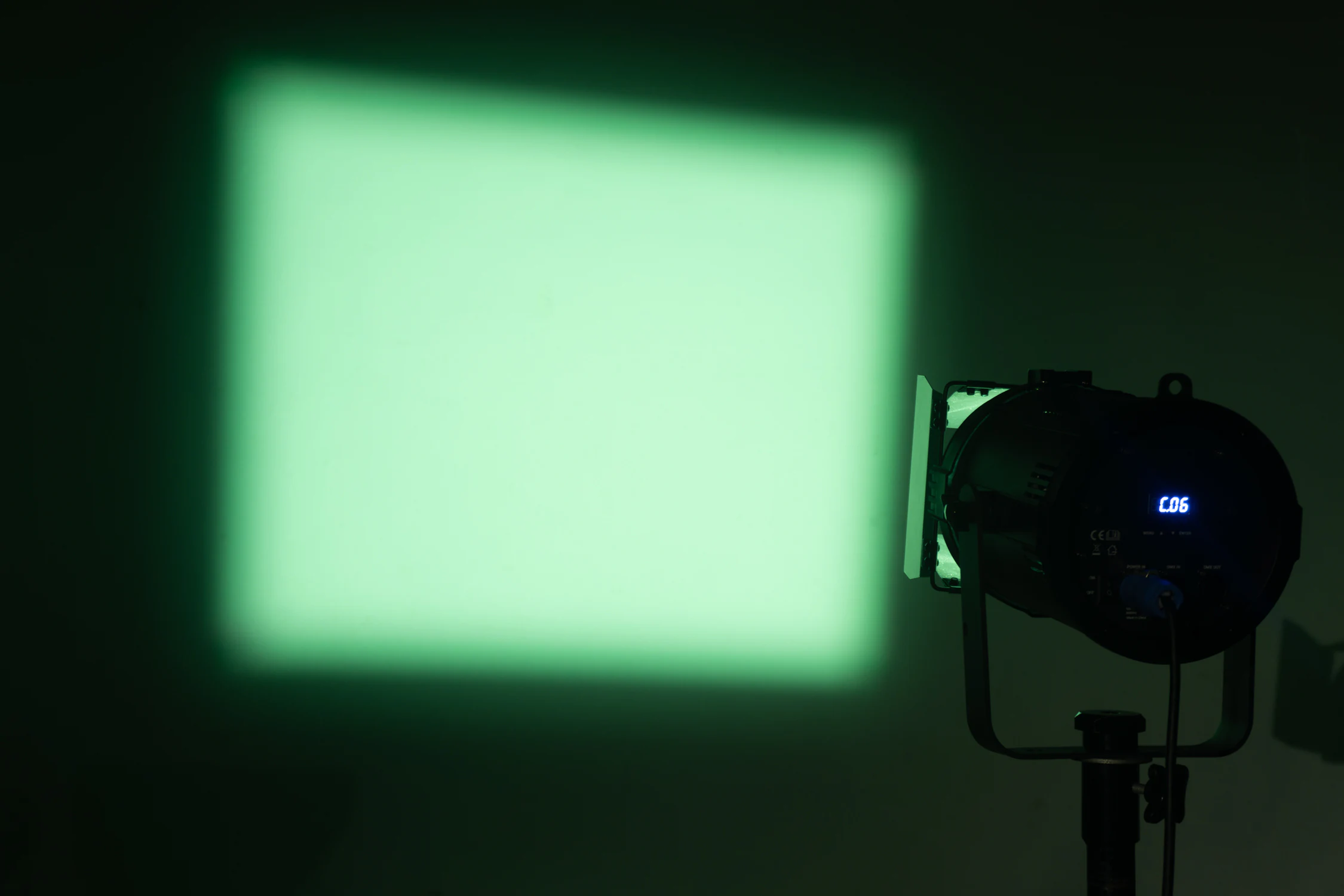

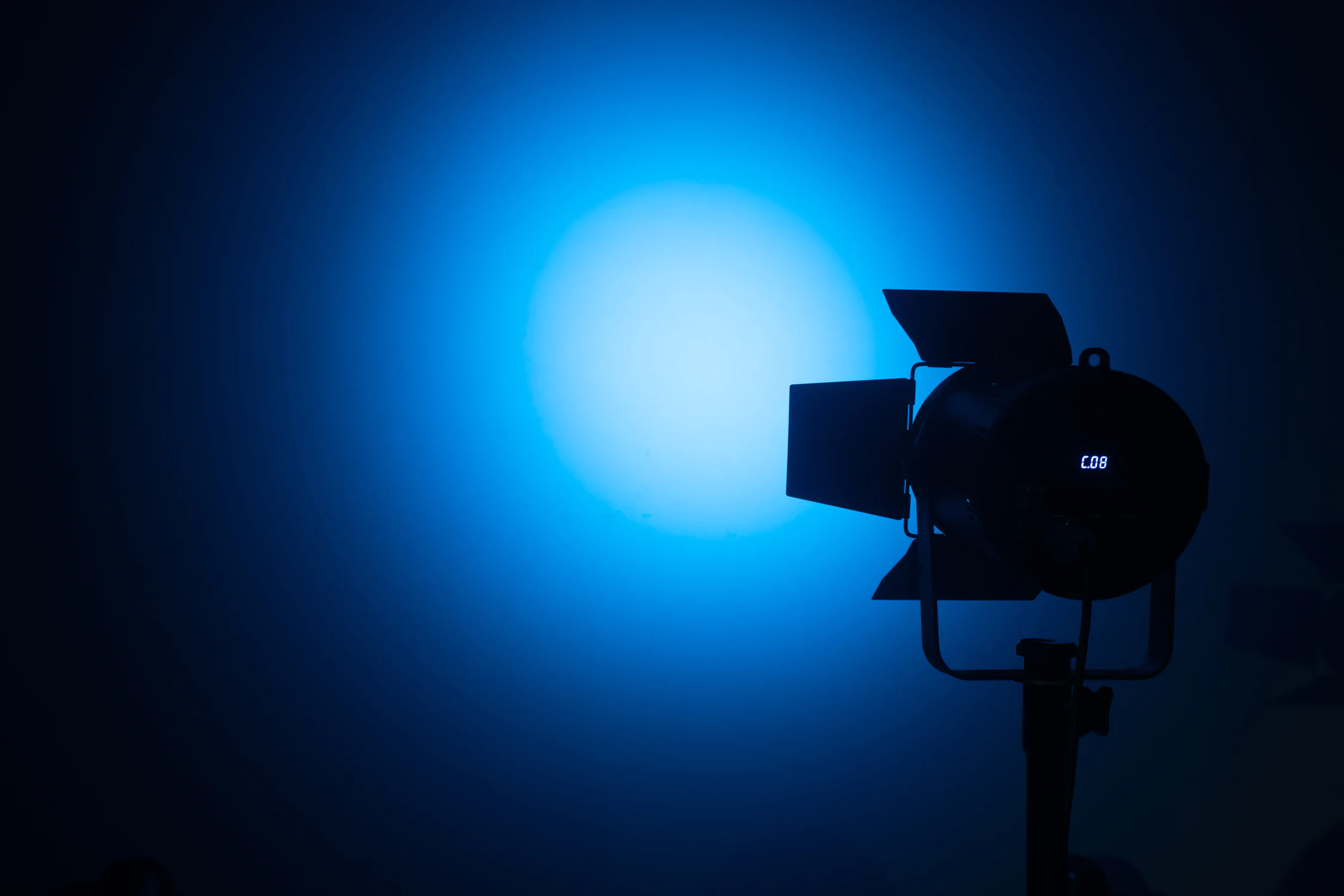

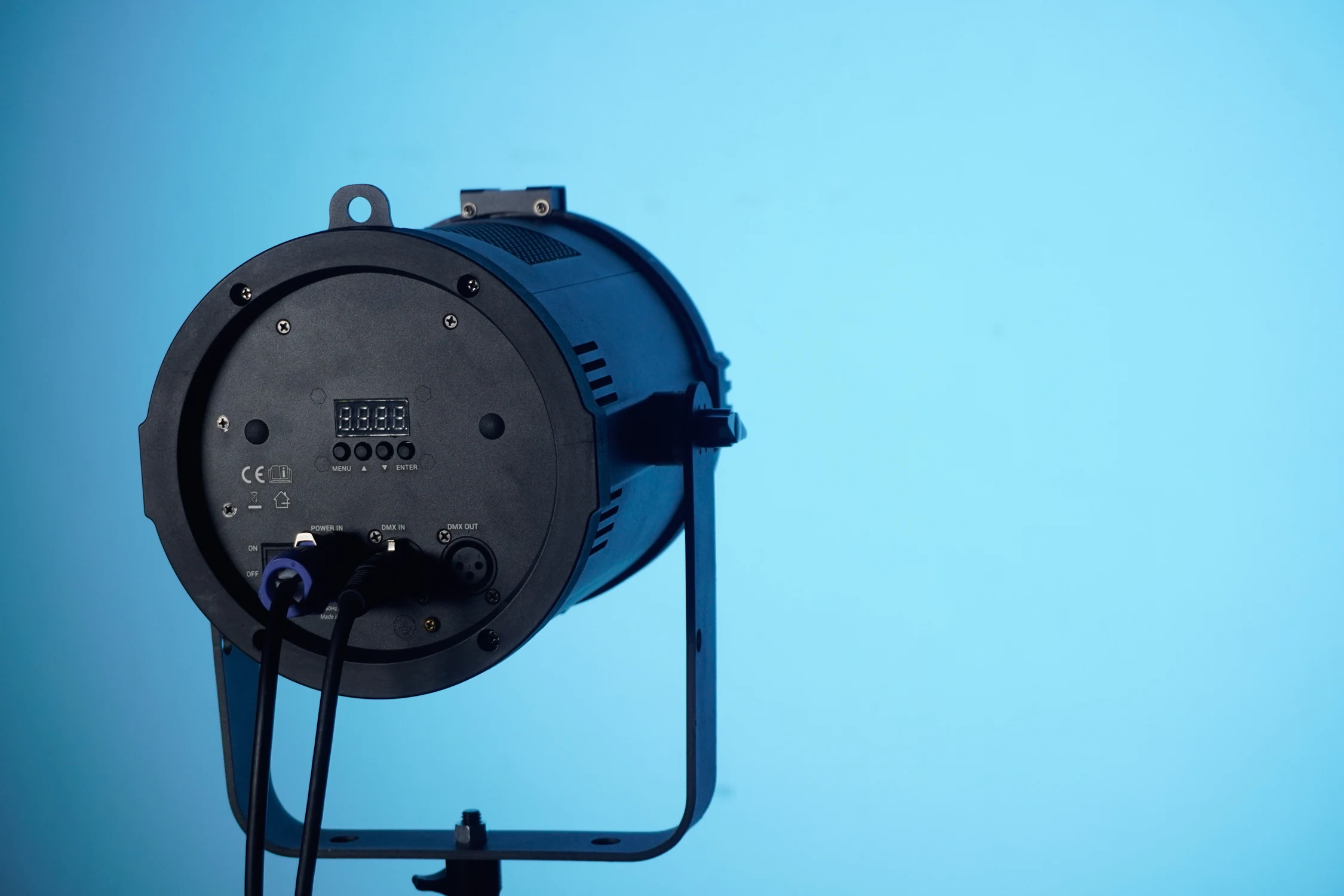

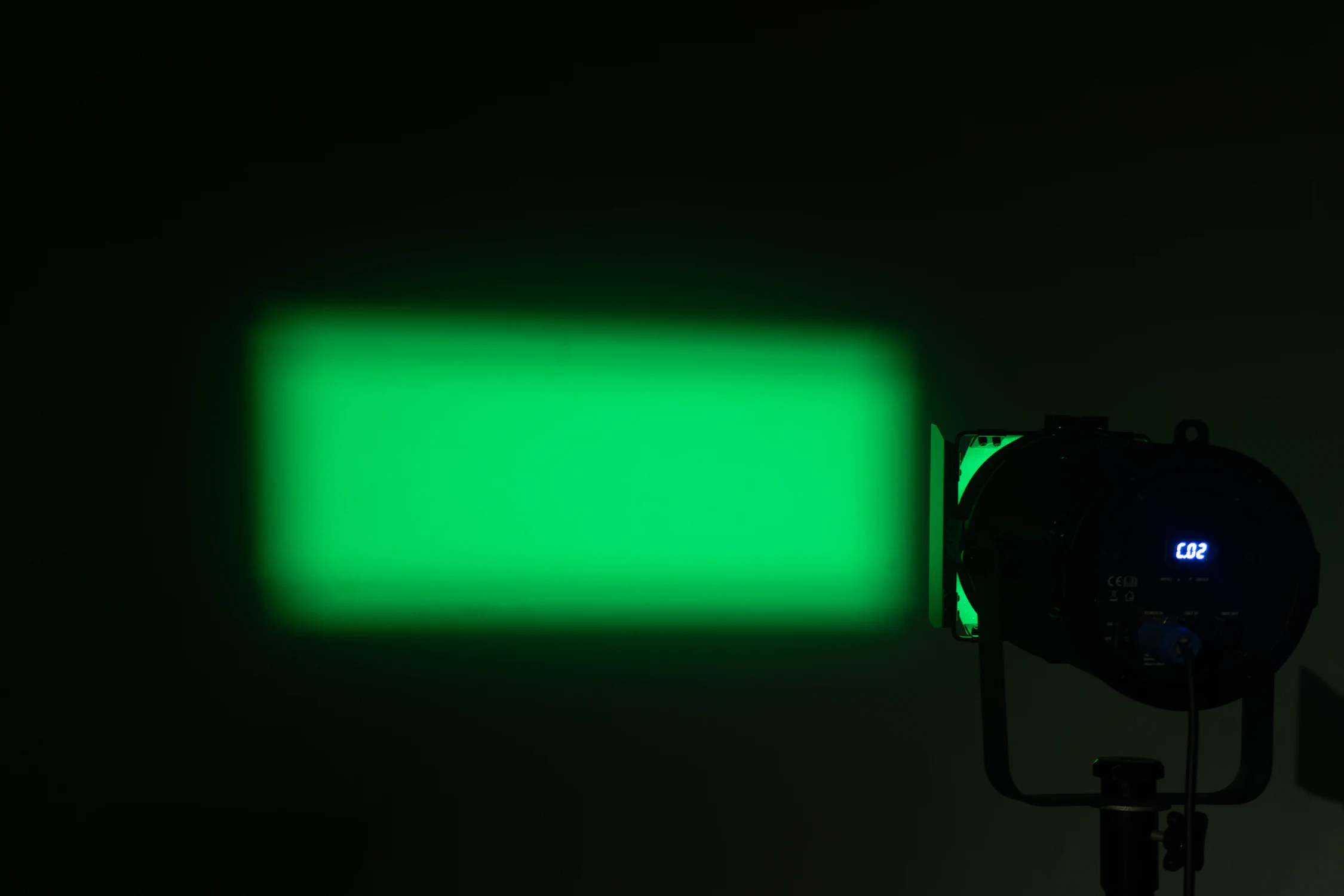

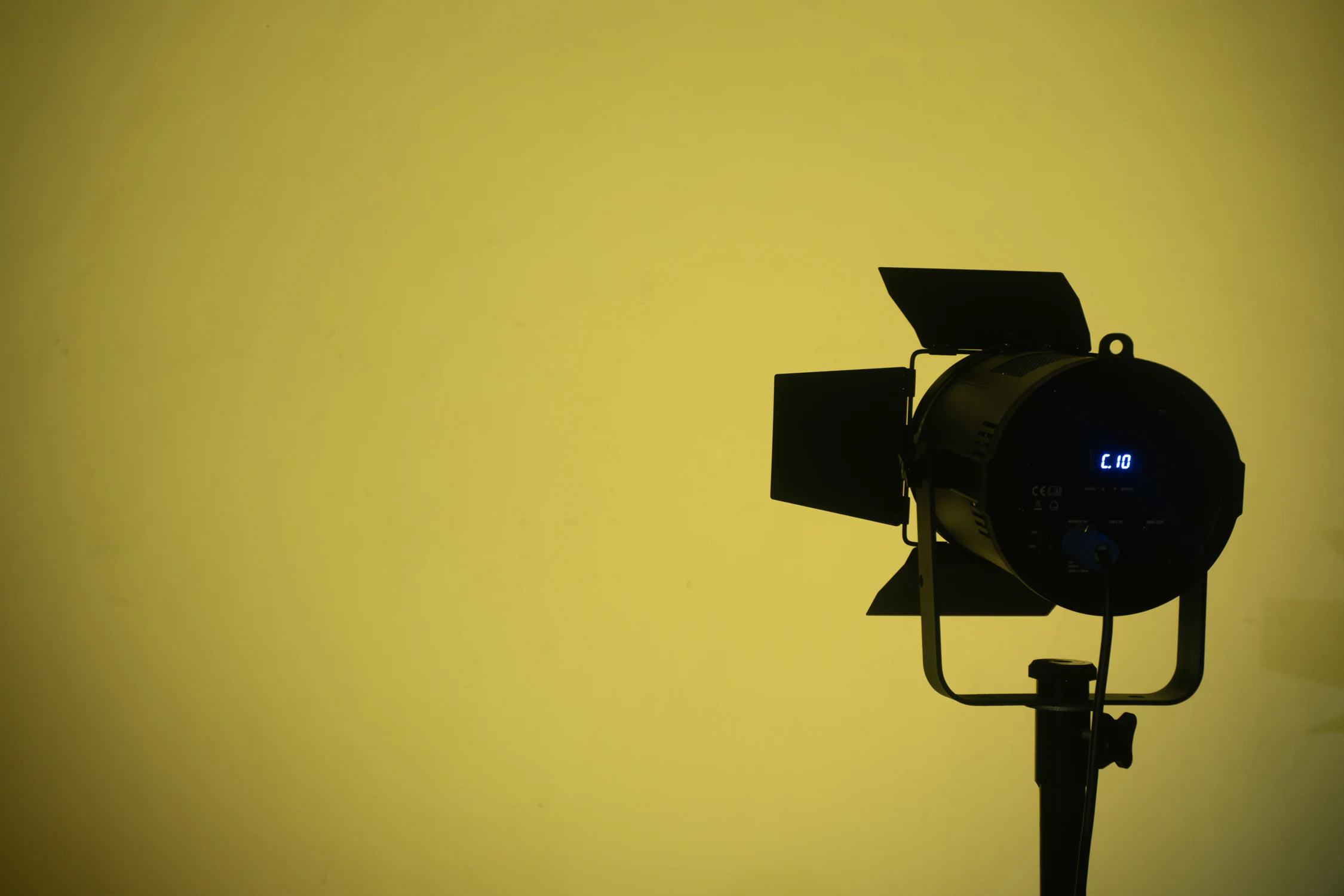

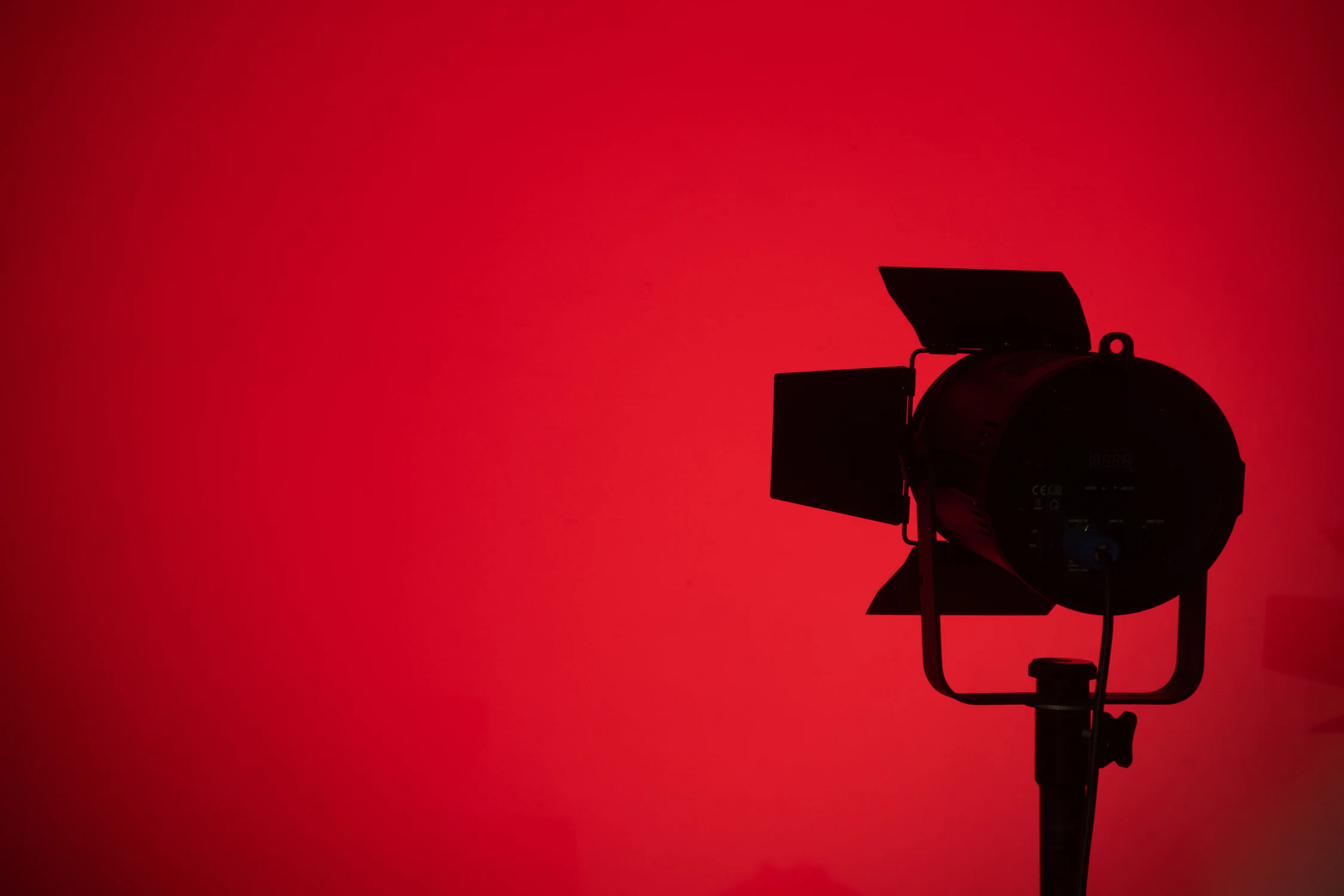

Product Gallery

Video

Specifications

Physical

  • Length: 229 mm (9.0 in.)
  • Width: 236 mm (9.3 in.)
  • Height: 290 mm (11.4 in.)
  • Net Weight: 3.6 kg (7.9 lb.) barndoor included

Dynamic effects

  • Electronic shutter effect: Instant open and blackout
  • Electronic dimming: 0 – 100%
  • Strobe and pulse effects: Variable speed and action, random strobe

Control and programming

  • Control options: DMX, RDM, stand-alone
  • DMX channels: ARC.1(3CH), AR1.D(4CH), ARC.2(4CH), AR2.D(5CH), AR2.S(6CH), HSV(3CH), STAG(11CH)
  • Dimmer frequency: 1.2 – 24.0 KHz
  • DMX address setting: Control panel with LED display or via RDM
  • DMX compliance: USITT DMX512-A
  • RDM compliance: ANSI/ESTA E1.20
  • RDM function available for addressing and settings

Optics

  • Light source: 200Watt LED
  • Color mixing: RGBL (RGBW optional)
  • Minimum LED lifetime: 50,000 hours
  • Zoom Range: 25° – 65° manual zoom

Photometric data

  • Full on 2780lux @1m 25°
  • For more information, please refer to the datasheet

Construction

  • Housing: Stretch aluminum, engineering grade flame-retardant plastic
  • Color: Black

Installation

  • Mounting: Adjustable bracket
  • Environment: IP20 indoor use
  • Orientation: Any
  • Minimum distance to combustible materials: 0.2 m (0.7 ft.)
  • Minimum distance to illuminated surfaces: 0.5 m (1.6 ft.)

Connections

  • AC power in, thru: PowerCon in & out
  • DMX & RDM data in/thru: 3-Pin XLR in & out(5-pin optional)

Electrical

  • AC power: 100–240 V nominal, 50/60 Hz
  • Power supply unit: Auto ranging power unit

Typical power and current

  • 230 V, 50 Hz: 1.2 A, 200 W, PF 0.96
  • Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.

Thermal

  • Cooling: Forced air (temperature-regulated, low noise)
  • Maximum ambient temperature (Ta max.): 40° C (104° F)
  • Minimum ambient temperature (Ta min.): -10° C (14° F)

Approvals

  • EU safety: EN IEC 60598-2-17:2018, EN 60598-1:2015+A1:2018,
  • EU EMC: EN 55015:2013+A1:2015, CISPR 15:2013+A1:2015, EN 61547:2009, IEC 61000-4-2:2008

Included parts

  • Rotating barndoor
  • Color frame
  • User manual
  • Safety cable

Optional parts

  • Mounting bracket
Download PDF datasheet*Specifications subject to change without notice.*

Accessories

Production Line Gallery

Documents

Get a Quote

Frequently asked questions

  • Do you have white LED version?

    Yes, we do have 200Watt tunable white version with same body. Model name – Event 200T.

  • Do you have white body version?

    Yes, we do can make white body version.

  • Can you make flight case for it?

    Yes, flight case package is possible. Normally 4 in 1, 6 in 1, 8 in 1 on request.
