Event 120T

100W tunable LED fresnel manual zoom

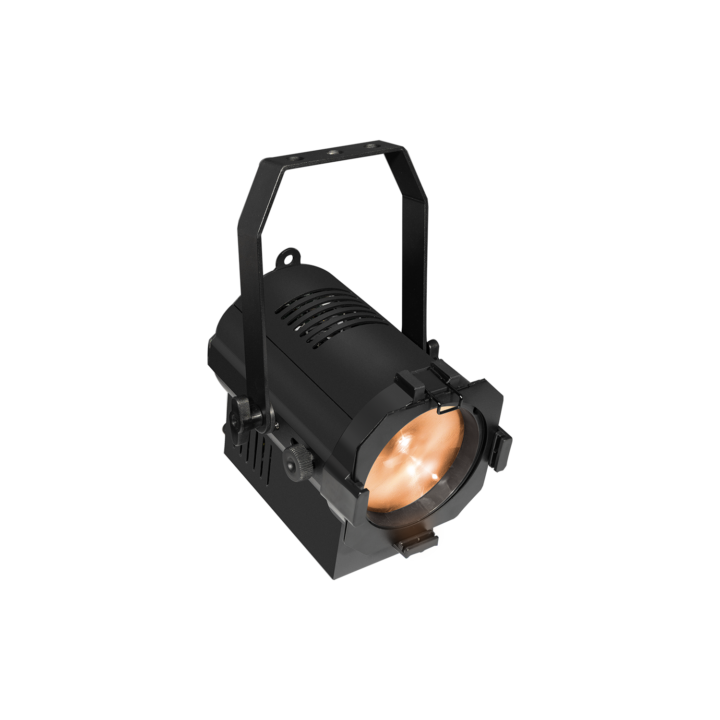

Event 120T is a successor for the popular Mini Fresnel 50T, the fixture keeps the same body size as Mini Fresnel 50T, and with 2 x power output. It is a 100 watt constant output LED source with tunable white color. Weight only 2.3kgs. It is a perfect product for places where the space is limited but powerful out- put is needed. Barndoor can be used for shape of light.

Super compact: The Event 120T weighs only 2.3kg(with barndoor included), it is super compact, light weight and idea for event and installation.

Color temperature adjustable: CCT adjustable from 2700k to 6000K, and moreover, each color temperature stays same power at 100watt, which means when you adjust color temperature, the brightness stays almost same.

Powerful: 100Watt LED light source, it is more powerful and more energy saving then lamp product. Creating much lower heat.

Beam angle adjustable (Zoom): 25 – 60 degree manual zoom makes it possible to use in short and long distance throw.

High CRI, TLCI, CQS: • Average R9≥95 means the fixture offers the top notch light quality.

 CDM-T LED replacement: Due to EU policy, CDMT lamp will need to be replaced. And this is a great time and suitable product for the replacement.

Event and exhibition light: Due to the above features, you can find the event 120T is born to be lighting product for event and exhibitions.

  • 100Watt WW + 100W CW COB white LED
  • 2700K – 6000K tunable color temperature
  • Average CRI≥95, R9 90+
  • Soft and even wash effect
  • 25° – 60° manual zoom
  • Smooth dimming, flicker free
  • Knob, DMX and RDM controls
  • Light weight, super compact size
  • Powercon in and out connection
Instand quoteDatasheet

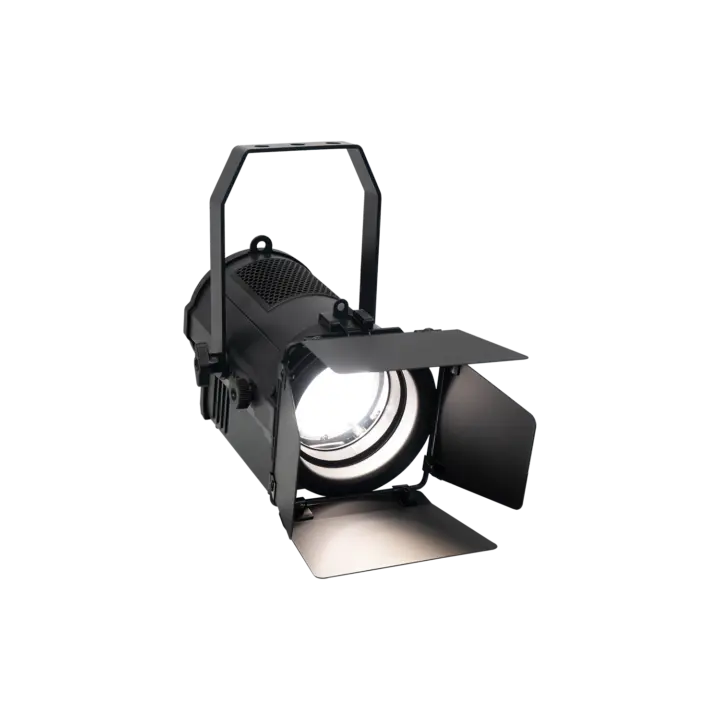

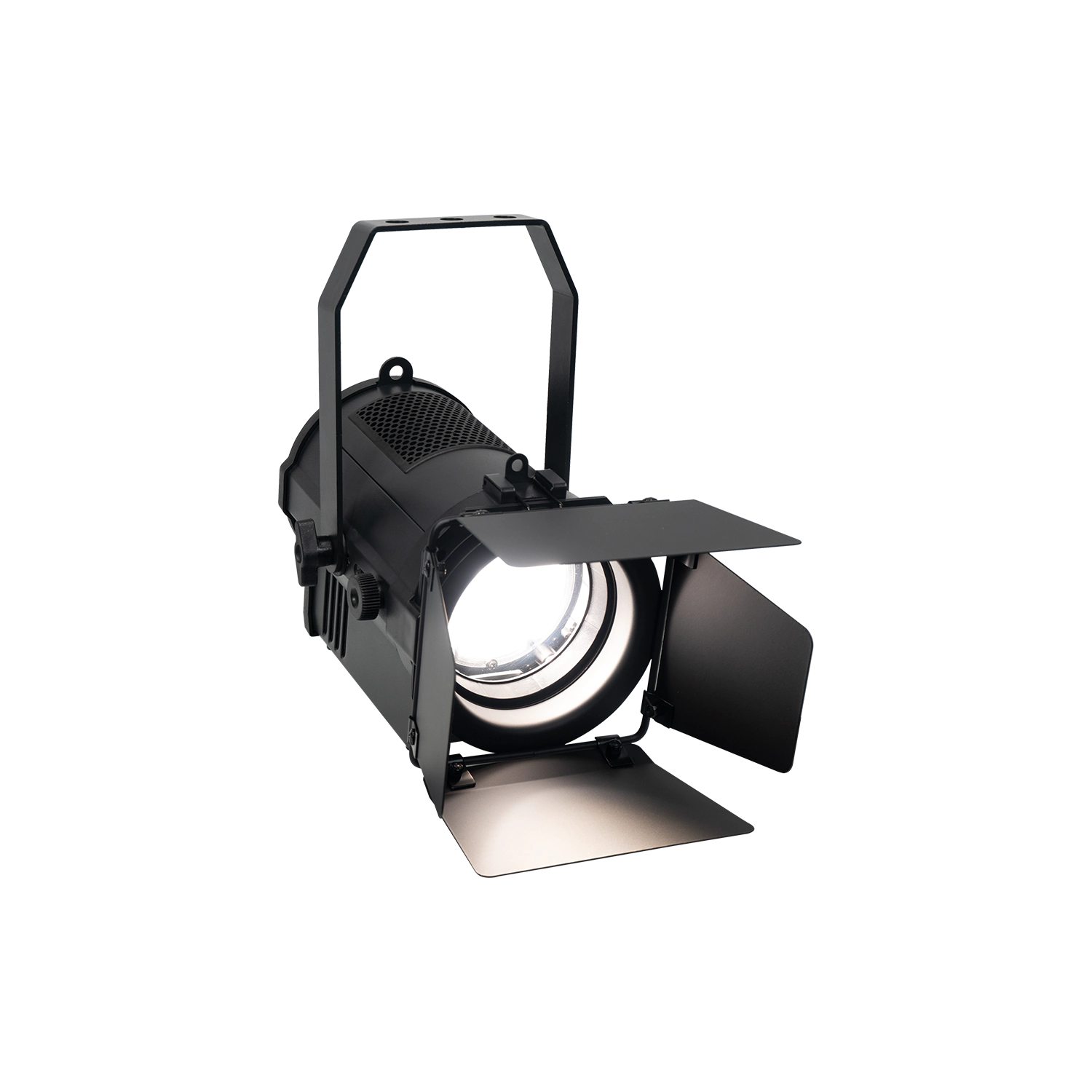

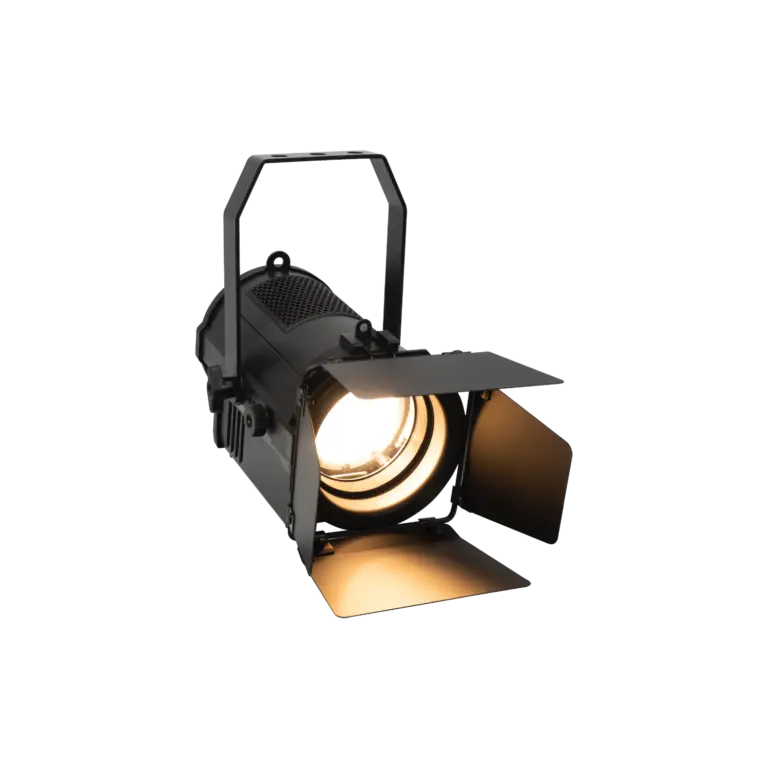

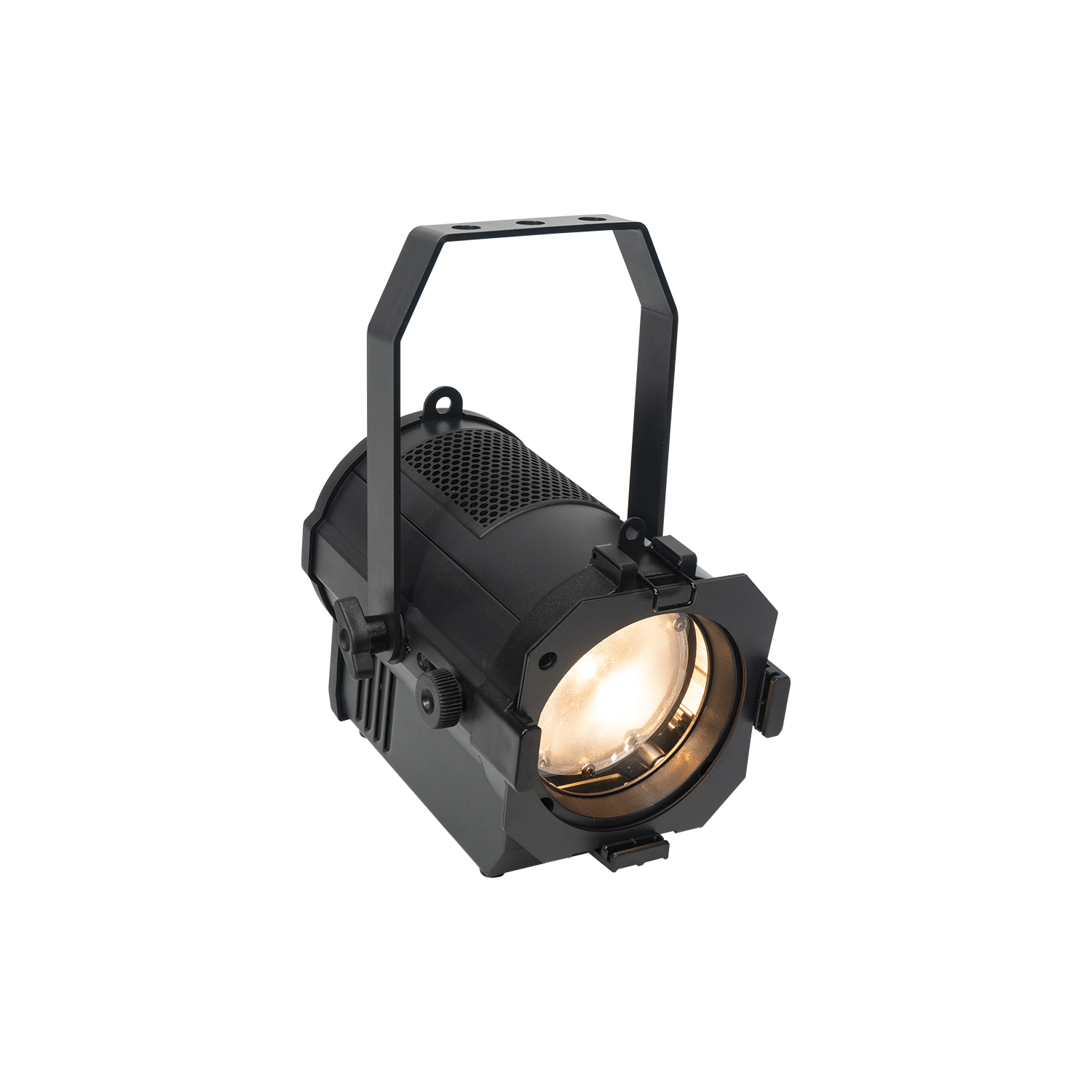

Event 120T main view with barndoor
New

Product Gallery

Specifications

Physical

  • Length: 212 mm (8.35 in.)
  • Width: 165 mm (6.50 in.)
  • Height: 262 mm (10.3 in.)
  • Net Weight: 2.3 kg (5.1 lb.) barndoor included

Dynamic effects

  • Electronic shutter effect: Instant open and blackout
  • Electronic dimming: 0 – 100%
  • Strobe and pulse effects: Variable speed and action, random strobe

Control and programming

  • Control options: DMX, RDM, stand-alone
  • DMX channels: 1/2/3/5
  • Dimmer frequency: 1.2 – 24.0 KHz
  • DMX address setting: Control panel with LED display or via RDM
  • DMX compliance: USITT DMX512-A
  • RDM compliance: ANSI/ESTA E1.20
  • RDM function available for addressing and settings

Optics

  • Light source: 100Wram white + 100Watt cool white LED
  • Color temperature: 2,700K – 6,000K optional
  • Minimum LED lifetime: 50,000 hours
  • Zoom Range: 25° – 60° manual zoom

Photometric data

  • Warm white 494lux @5m 25°
  • Cool white 742lux @5m 25°
  • For more information, please refer to the datasheet

Construction

  • Housing: Stretch aluminum, engineering grade flame-retardant plastic
  • Color: Black

Installation

  • Mounting: Adjustable bracket
  • Environment: IP20 indoor use
  • Orientation: Any
  • Minimum distance to combustible materials: 0.2 m (0.7 ft.)
  • Minimum distance to illuminated surfaces: 0.5 m (1.6 ft.)

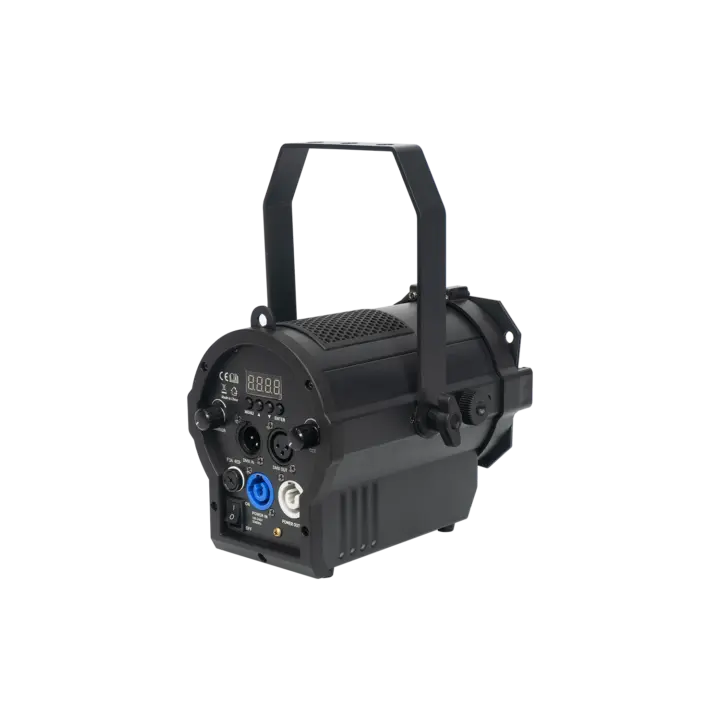

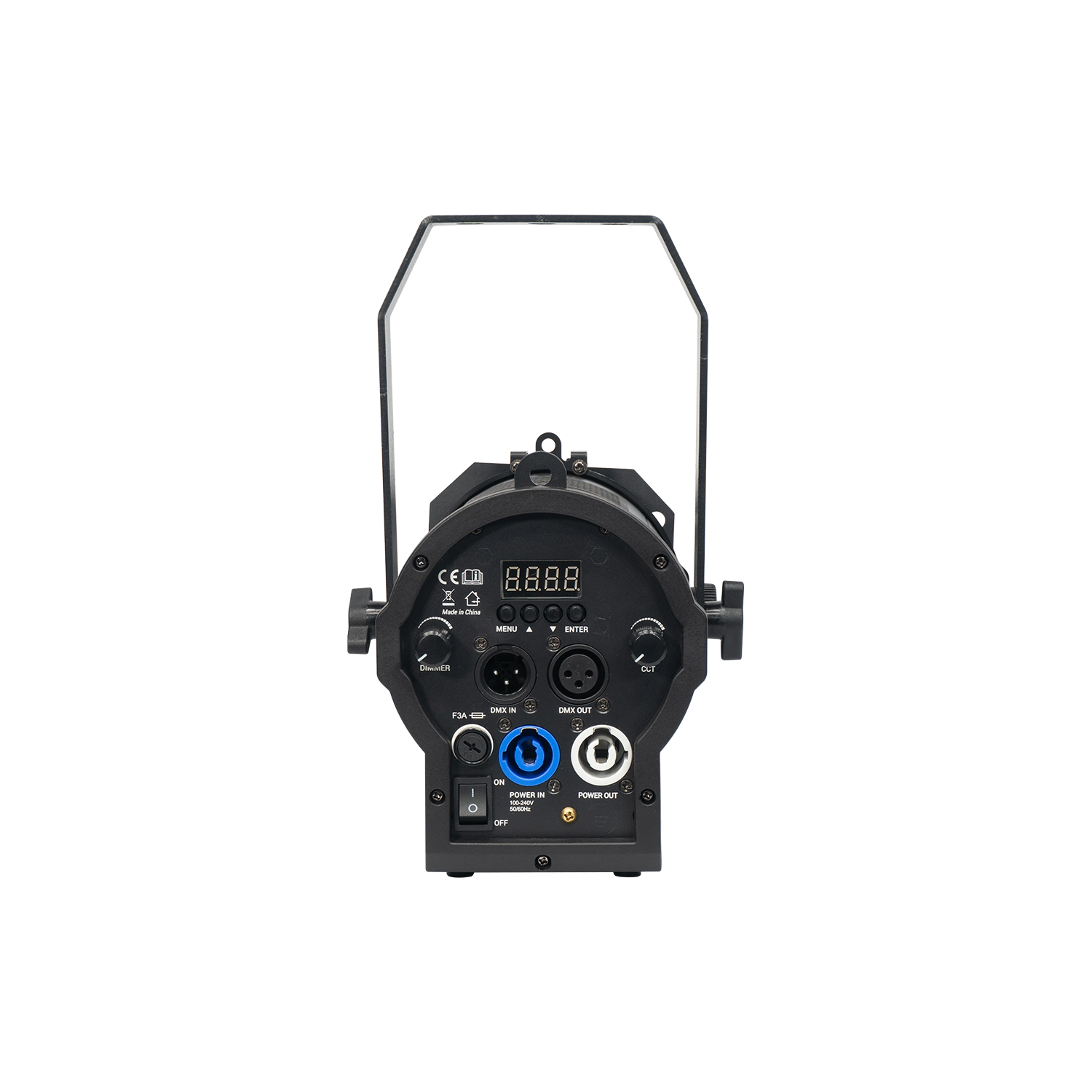

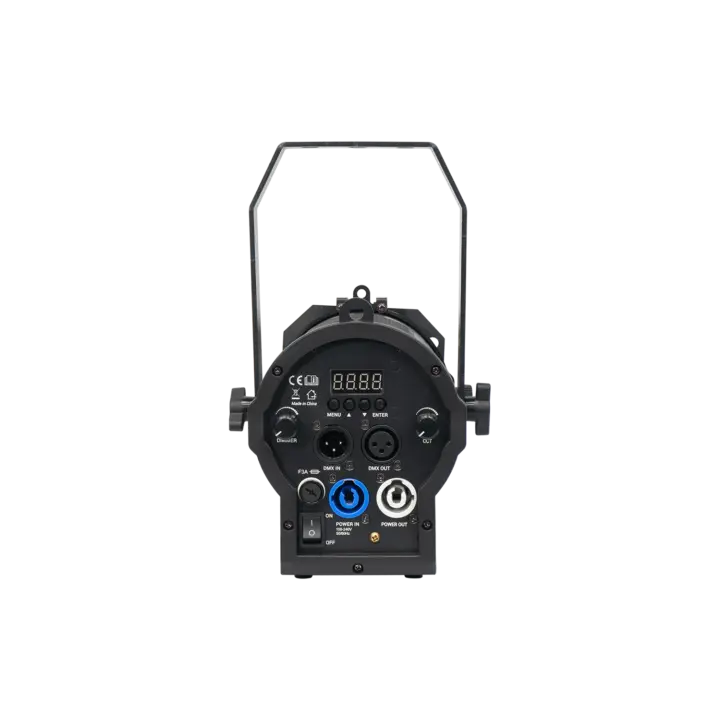

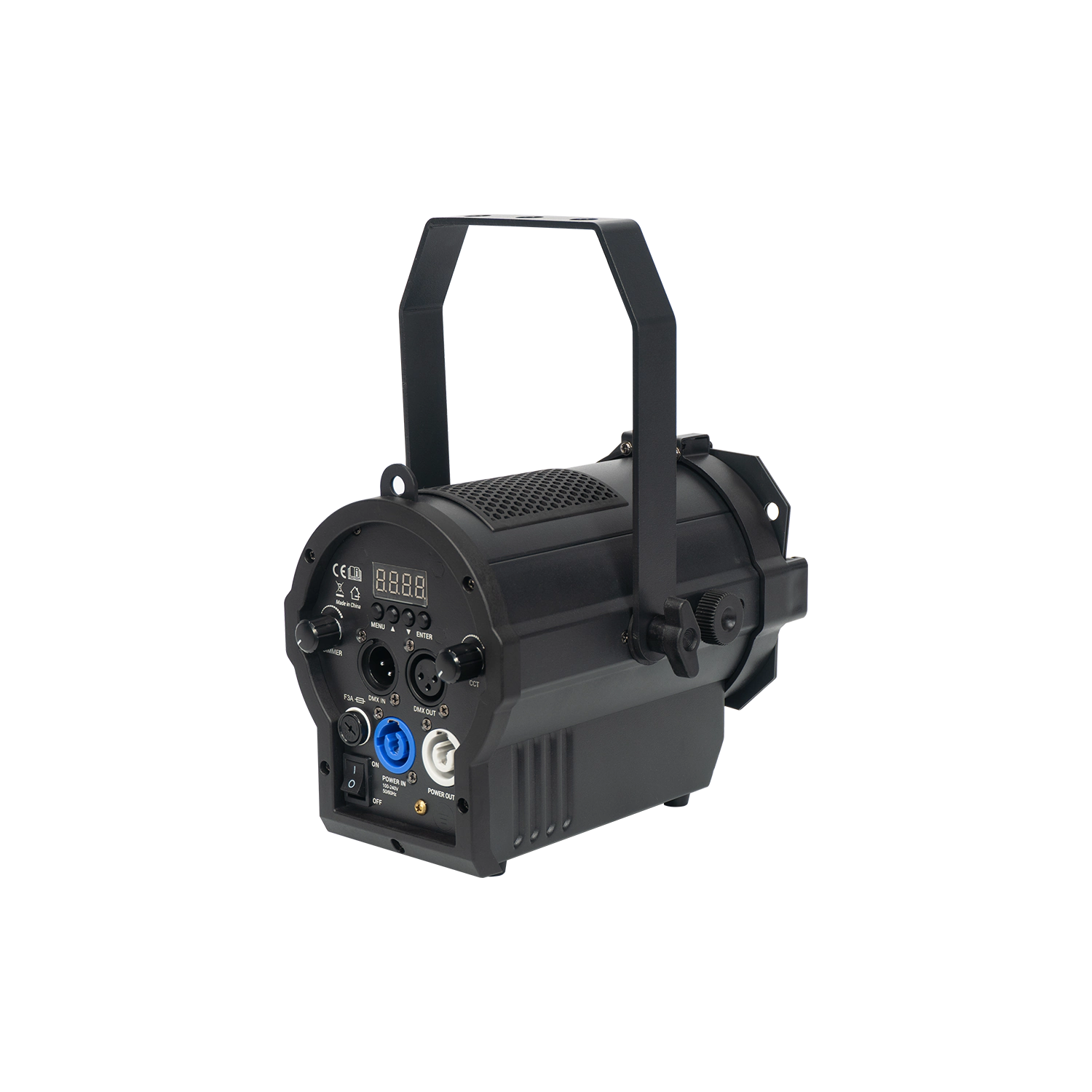

Connections

  • AC power in, thru: PowerCon in & out
  • DMX & RDM data in/thru: 3-Pin XLR in & out(5-pin optional)

Electrical

  • AC power: 100–240 V nominal, 50/60 Hz
  • Power supply unit: Auto ranging power unit

Typical power and current

  • 230 V, 50 Hz: 1.2 A, 100 W
  • Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.

Thermal

  • Cooling: Forced air (temperature-regulated, low noise)
  • Maximum ambient temperature (Ta max.): 40° C (104° F)
  • Minimum ambient temperature (Ta min.): -10° C (14° F)

Approvals

  • EU safety: EN IEC 60598-2-17:2018, EN 60598-1:2015+A1:2018,
  • EU EMC: EN 55015:2013+A1:2015, CISPR 15:2013+A1:2015, EN 61547:2009, IEC 61000-4-2:2008

Included parts

  • Rotating barndoor
  • Color frame
  • User manual
  • Safety cable

Optional parts

  • Mounting bracket
Download PDF datasheet*Specifications subject to change without notice.*

Accessories

Documents

Get a Quote

Frequently asked questions

  • Can you make white body?

    Yes, white body is possible.

  • Can you make powercon true 1 connector?

    Yes, it would be possible to make powercon true 1 version.

  • Do you have colored version?

    Yes, we have RGBL version, the model name is – Event 120C.

  • Is barndoor included?

    Yes, barndoor is included in delivery.

  • Is color frame included?

    Yes, color frame is standard part, included in every delivery.

  • Does it work in 110V?

    Yes, our fixture support wide range voltage which is 100 – 240V.

  • Does the power cable have plug?

    Yes, every unit have plug, and we’ll prepare according which type of plug you need.

  • Can you print our logo on products?

    Yes, we can print your brand logo on the products, with a bit MOQ required.
