CTC 300 Fresnel

300W + 300W tunable LED fresnel zoom auto zoom

CTC 300 Fresnel is a 300W warm white + 300Watt cold white powered LED fresnel. Features motorized zoom range from 8° – 60°, color temperature 2800K – 6500K tunable. It’s high power light output, high CRI, DMX, RDM control, soft wash effect make this fixture a perfect replacement of the traditional 1K fresnels.

  • 300W warm + 300W cold white LED
  • 2800K – 6500K tunable
  • 1KW tungsten equivalent
  • Average CRI 98, TLCI 98
  • RDM, DMX control
  • 4 dimmer curves selectable
  • Studio mode for super silent operation
  • 8° – 60° motorized zoom
  • Smooth dimming
  • Flicker free with selectable PWM
  • Rotary, key, DMX control of dimmer and zoom
Instand quoteDatasheet

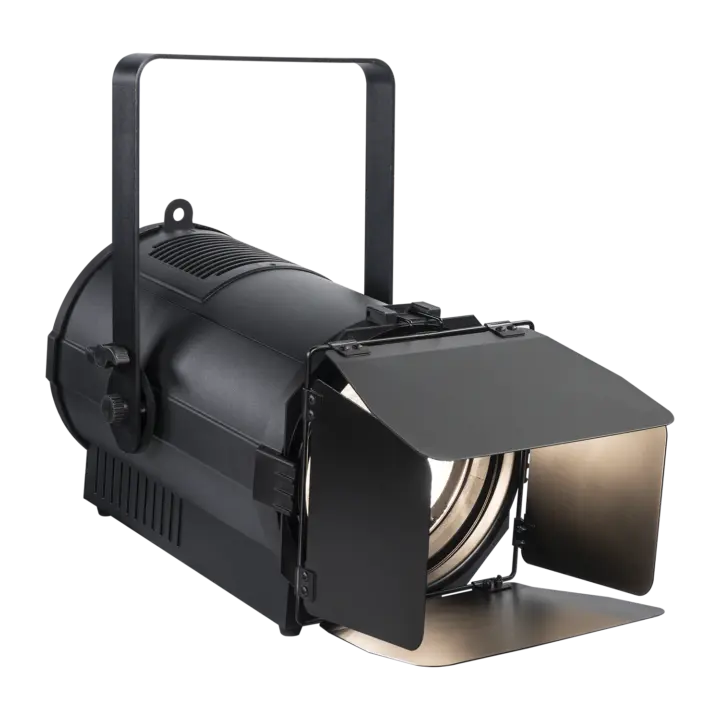

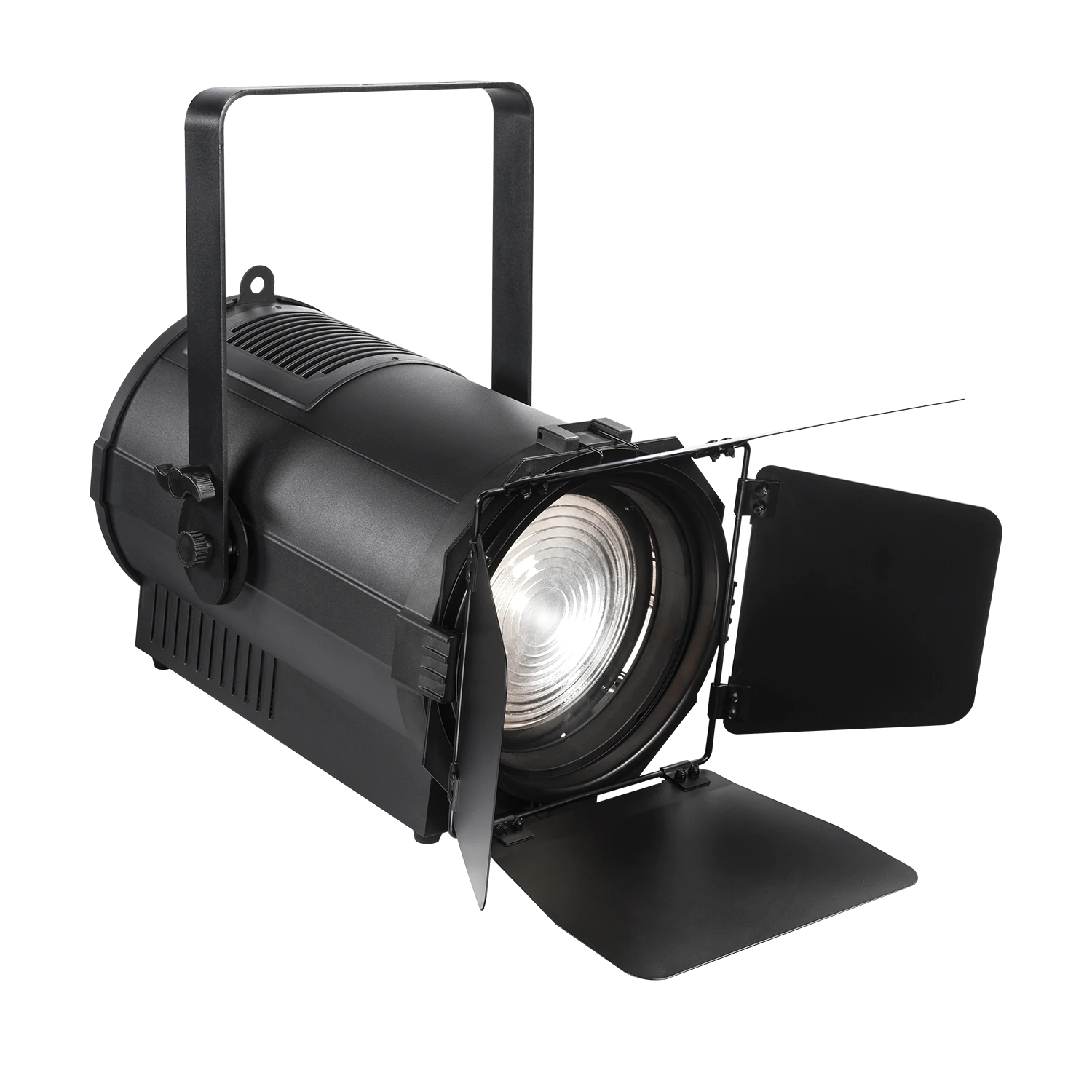

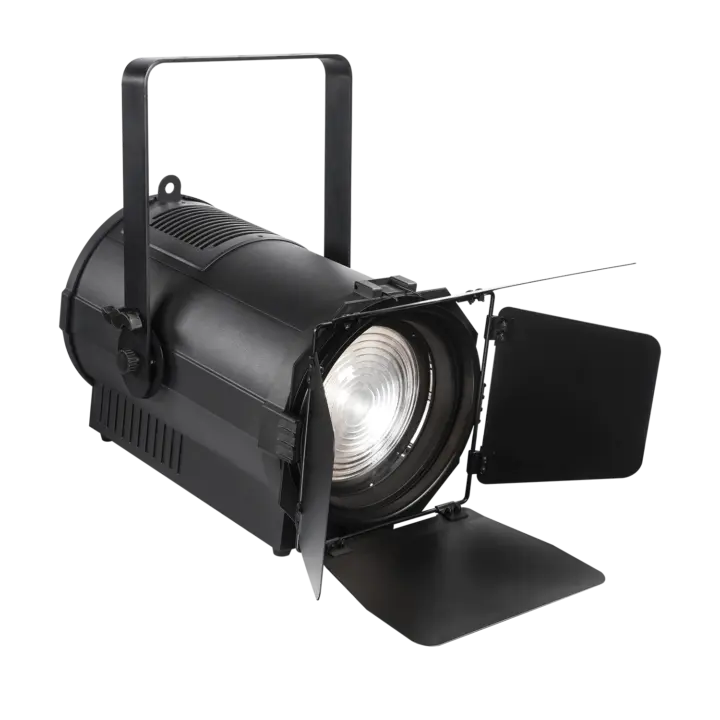

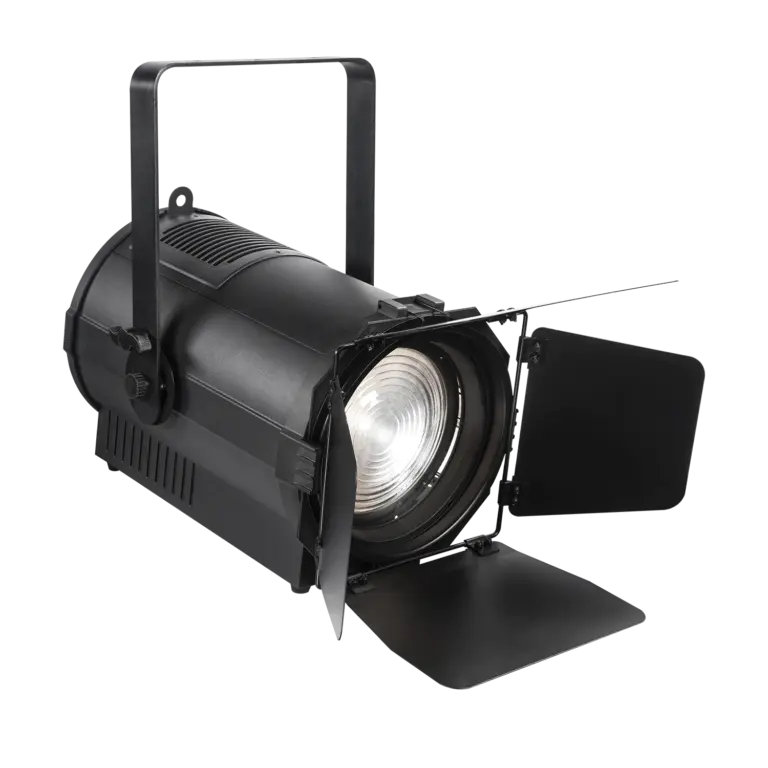

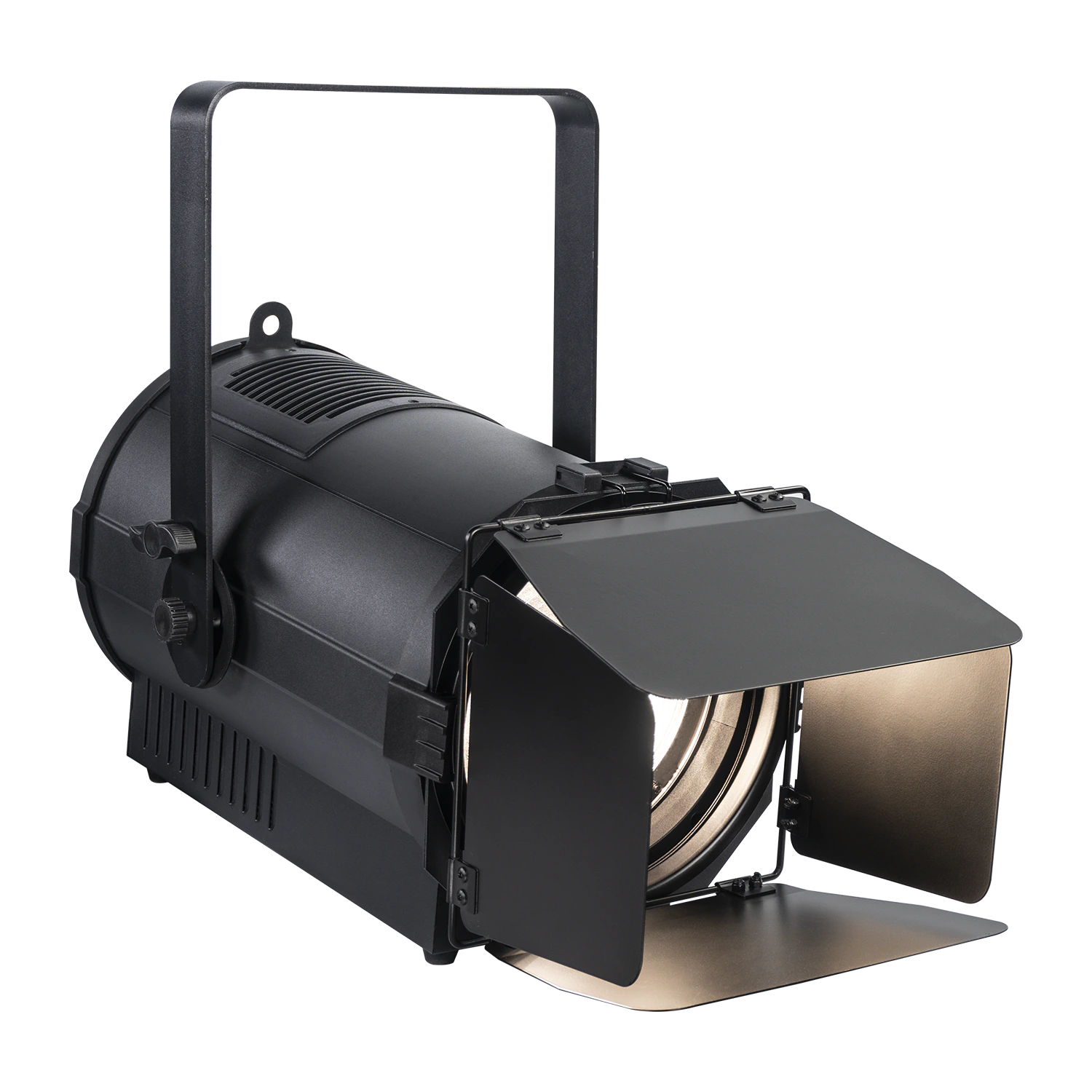

CTC 300 Fresnel main view

Product Gallery

Specifications

Physical

  • Length: 460 mm (18.1 in.)
  • Width: 320 mm (12.6 in.)
  • Height: 440 mm (17.3 in.)
  • Net Weight: 11 kg (24.2 lb.) barndoor included

Dynamic effects

  • Electronic shutter effect: Instant open and blackout
  • Electronic dimming: 0 – 100%
  • Strobe and pulse effects: Variable speed and action, random strobe

Control and programming

  • Control options: DMX, RDM, stand-alone
  • DMX channels: 3/6
  • Dimmer frequency: 1.2 – 20.0 KHz
  • Dimmer curves: Standard/ Stage/ TV/ Architecture/ Theatre
  • DMX address setting: Control panel with LCD display or via RDM
  • DMX compliance: USITT DMX512-A
  • RDM compliance: ANSI/ESTA E1.20
  • RDM function available for addressing and settings

Optics

  • Light source: 300W WW + 300W CW LED
  • Color temperature: 2,800K – 6,500K tunable
  • Minimum LED lifetime: 50,000 hours
  • Zoom Range: 8° – 60° motorized zoom

Photometric data

  • 5600K 3600lux @5m 8°
  • CRI (Color Rendering Index) : Avg. >98 R9>90
  • TM-30 Rf (IES TM-30-15 Fidelity Index): >92
  • TM-30 Rg (IES TM-30-15 Gamut Index): >98
  • TLCI (Television Lighting Consistency Index): >98
  • For more information, please refer to the datasheet

Construction

  • Housing: Stretch aluminum, engineering grade flame-retardant plastic
  • Color: Black

Installation

  • Mounting: Adjustable bracket
  • Environment: IP20 indoor use
  • Orientation: Any
  • Minimum distance to combustible materials: 0.2 m (0.7 ft.)
  • Minimum distance to illuminated surfaces: 0.5 m (1.6 ft.)

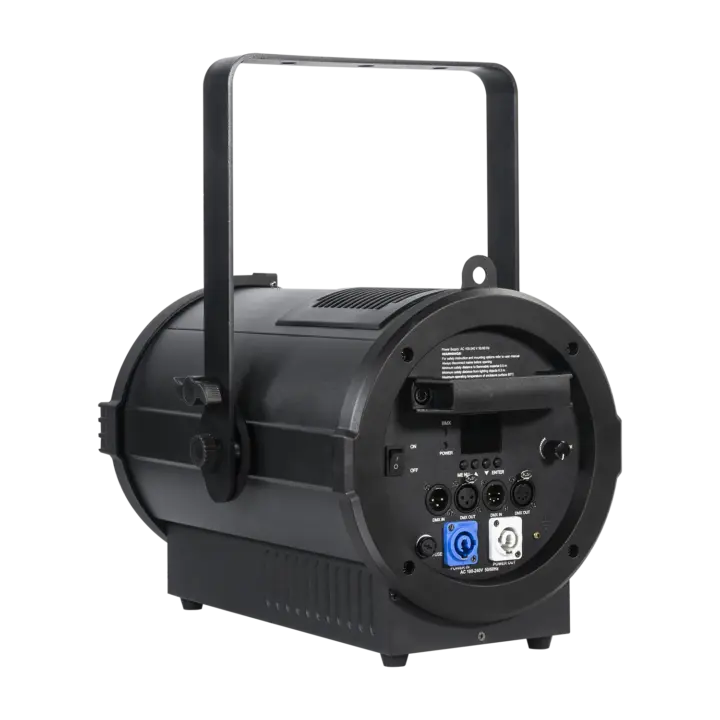

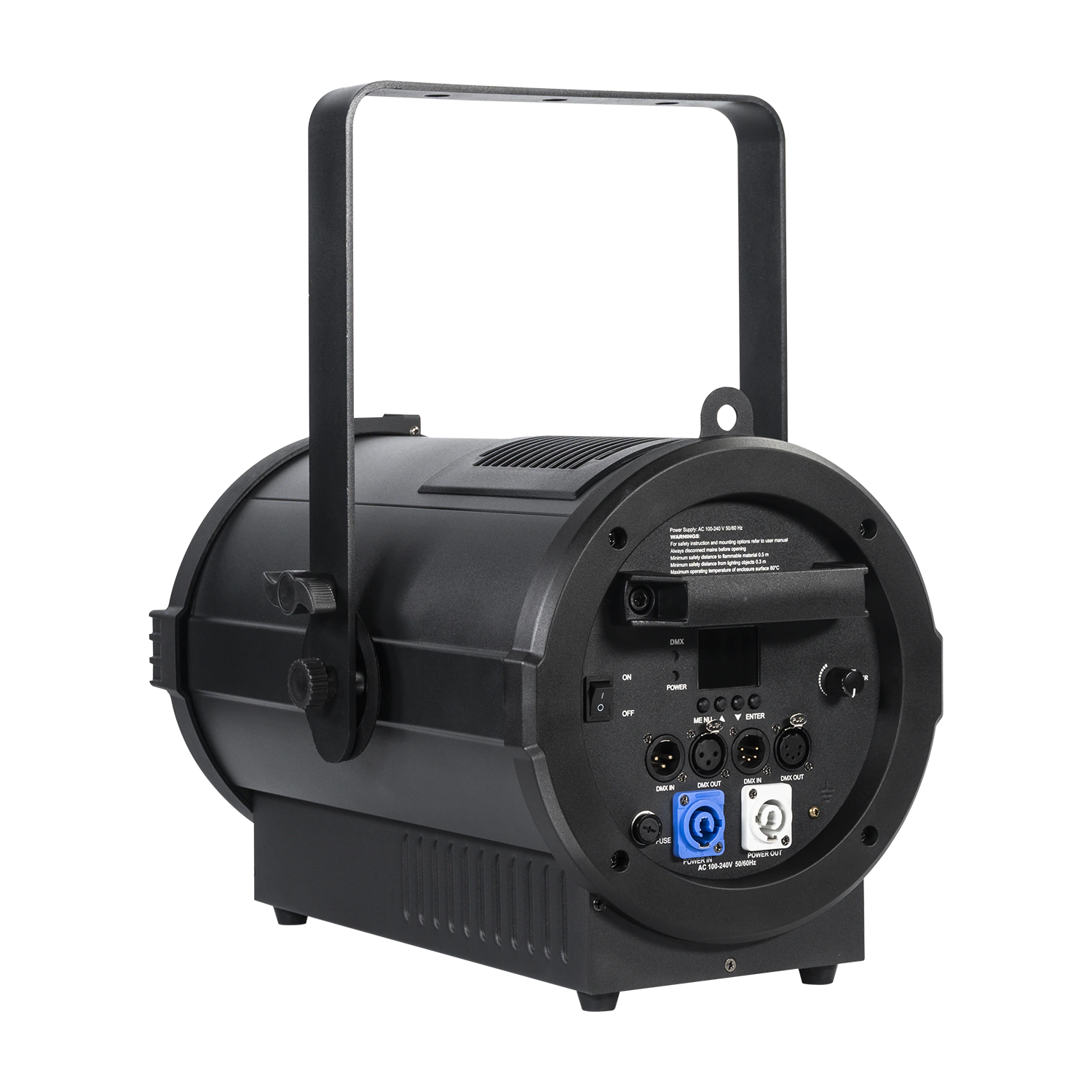

Connections

  • AC power in, thru: PowerCon in & out
  • DMX & RDM data in/thru: 3-Pin &  5-Pin XLR in & out

Electrical

  • AC power: 100–240 V nominal, 50/60 Hz
  • Power supply unit: Auto ranging power unit

Typical power and current

  • 230 V, 50 Hz: 1.2 A, 300W, PF 0.96
  • Measurements made at nominal voltage with all LEDs at full intensity. Allow for a
  • deviation of +/- 10%.

Thermal

  • Cooling: Forced air (temperature-regulated, low noise)
  • Maximum ambient temperature (Ta max.): 40° C (104° F)
  • Minimum ambient temperature (Ta min.): -10° C (14° F)

Approvals

  • EU safety: EN IEC 60598-2-17:2018, EN 60598-1:2015+A1:2018,
  • EU EMC: EN 55015:2013+A1:2015, CISPR 15:2013+A1:2015, EN 61547:2009, IEC
  • 61000-4-2:2008

Included parts

  • Rotating barndoor
  • Color frame
  • User manual

Optional parts

  • Mounting bracket
  • Safety cable
Download PDF datasheet*Specifications subject to change without notice.*

Accessories

Documents

Get a Quote

Frequently asked questions

  • Can you change the powercon to true 1 connector?

    Yes, we can install Seetronic IP rated connector. The cost will be little bit more.

  • Do you have white body version?

    Yes, we do have white body version for this model.

  • Is barndoor included?

    Yes, barndoor is included in delivery.

  • Is color frame included?

    Yes, color frame is standard part, included in every delivery.

  • Does it work in 110V?

    Yes, our fixture support wide range voltage which is 100 – 240V.

  • Does the power cable have plug?

    Yes, every unit have plug, and we’ll prepare according which type of plug you need.

  • Do you have flight case for the products?

    Yes, you can order flight case from us directly.

  • Can you print our logo on products?

    Yes, we can print your brand logo on the products, with a bit MOQ required.
